1201080035 Micro-Change (M12) by Molex

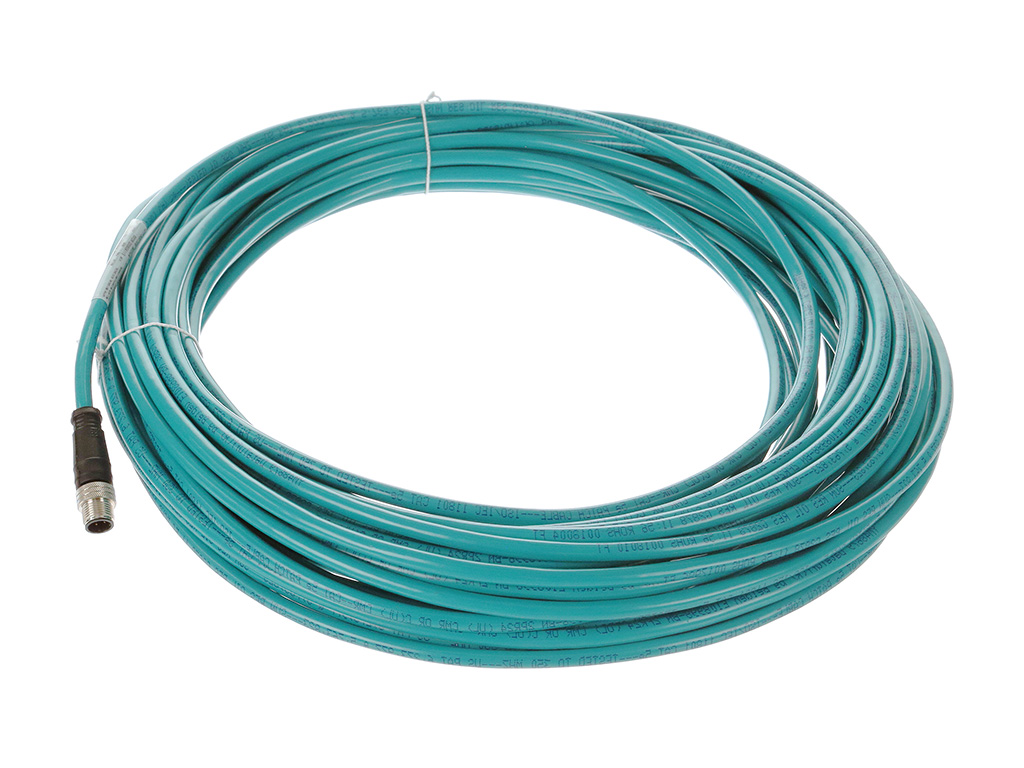

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (Straight) to Male (Straight), 24 AWG, PVC Cable, 23.0m (75.46') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120108-0035,
E11A06002M230 |
Where to Buy
Prices starting from US$84.34
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$84.34
|
2
in stock
|
Buy Now |
|
Newark Electronics
from US$126.27
|
0
in stock
|
Buy Now |
|
TME
from US$95.37
|
0
in stock
|
Buy Now |
|
element14
from US$126.07
|
0
in stock
|
Buy Now |
|
Conrad
from US$86.61
|
0
in stock
|
Buy Now |
|
Sager
from US$104.48
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$102.81
|
0
in stock
|
Buy Now |
|
Farnell
from US$136.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Diameter | 6.35mm (.250") |
| Cable Length | 23.0m (75.46') |
| Color Cable Jacket | Blue Green |
| Connector End A | Micro-Change (M12) |
| Connector End B | Micro-Change (M12) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | D-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPU |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 125.220/g |
| Orientation | Straight to Straight |
| Poles | 4 |
| Temperature Range Operating | -25° to +75°C |
| Wire Cable Type | Unshielded-Stranded |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| E11A06002M230 MIC D-CODE M/ME 4P 2PR 23M | Heilind Europe |
| Sensor Cord, 4P, M12 Rcpt-Plug, 75.46Ft | Newark Electronics |
| Cable: for sensors/automation | TME |
| SENSOR CORD, 4P, M12 RCPT-PLUG, 75.46FT | element14 |
| Molex 1201080035 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables MICRO-CHANGE M12 MA-MA | Sager |
