1201080082 M12 Data Push-Pull,Ultra-Lock (M12) by Molex

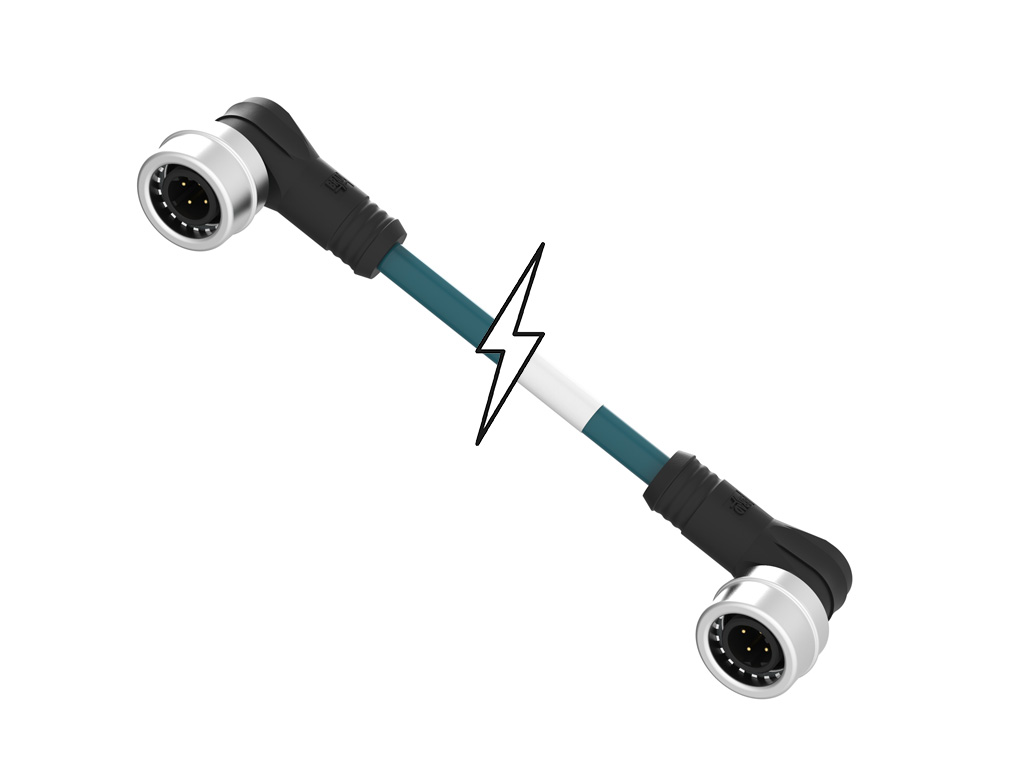

M12 Data, D-Coded, M12 Push-Pull Ultra-Lock Double Ended Cordset, 4 Poles, M12 Ultra-Lock Male (90°) to Male (90°), 2x2x24 AWG, Teal PVC Cable, 1.0m (3.28') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120108-0082,
EWWA06303M010 |
Where to Buy
Prices starting from US$36.65
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$57.15
|
42
in stock
|
Buy Now |
|
Farnell
from US$65.22
|
38
in stock
|
Buy Now |
|
Avnet America
from US$48.01
|
0
in stock
|
Buy Now |
|
RS Americas
from US$85.24
|
0
in stock
|
Buy Now |
|
element14
from US$59.63
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$45.61
|
0
in stock
|
Buy Now |
|
Sager
from US$49.43
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$48.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$36.65
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | M12 Data Push-Pull,Ultra-Lock (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Cable Diameter | 6.10mm (.240") |
| Cable Length | 1.0m (3.28') |
| Color Cable Jacket | Teal |
| Connector End A | M12 Data Push-Pull |
| Connector End B | M12 Data Push-Pull |
| Coupling Style | Push-Pull |
| Gender | Male-Male |
| Key Way | D-Coded |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 77.127/g |
| Orientation | 90° to 90° |
| Poles | 4 |
| Temperature Range Operating | -20° to +75°C |
| Wire Cable Type | Unshielded-Stranded |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
1201080082 Sensors & Transducers by Molex
SENSOR CORD 4P M12 PLUG-PLUG 1M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Right Angle 4 Position Plug |
|---|---|
| Connector Type B | M12 Sensor Right Angle 4 Position Plug |
| Cable Length - Metric | 1m |
| Cable Length - Imperial | 3.3ft |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mic 4P M/Mp Ulock 90/90 1M |Molex 1201080082 | Newark Electronics |
| CABLE ASSY, 4P, R/A M12 PLUG-R/A PLUG/1M | Farnell |
| Industrial Ethernet Brad Ultra-Lock (M12) Double-Ended Cordset 4 Position Male Right Angle to Male | Avnet America |
| 75M9842 | element14 |
| MICRO-CHANGE 2 ULTRA-LOCK M12 | TTI Americas |
| Sensor Cables / Actuator Cables MIC 4P ULOCK 24AWG DE M/MP 90/90D 1M | Sager |
| MIC 4P M/MP ULOCK 90/90 1M EWWA06303M010 | Heilind Americas |
