1201085049 Ultra-Lock (M12) by Molex

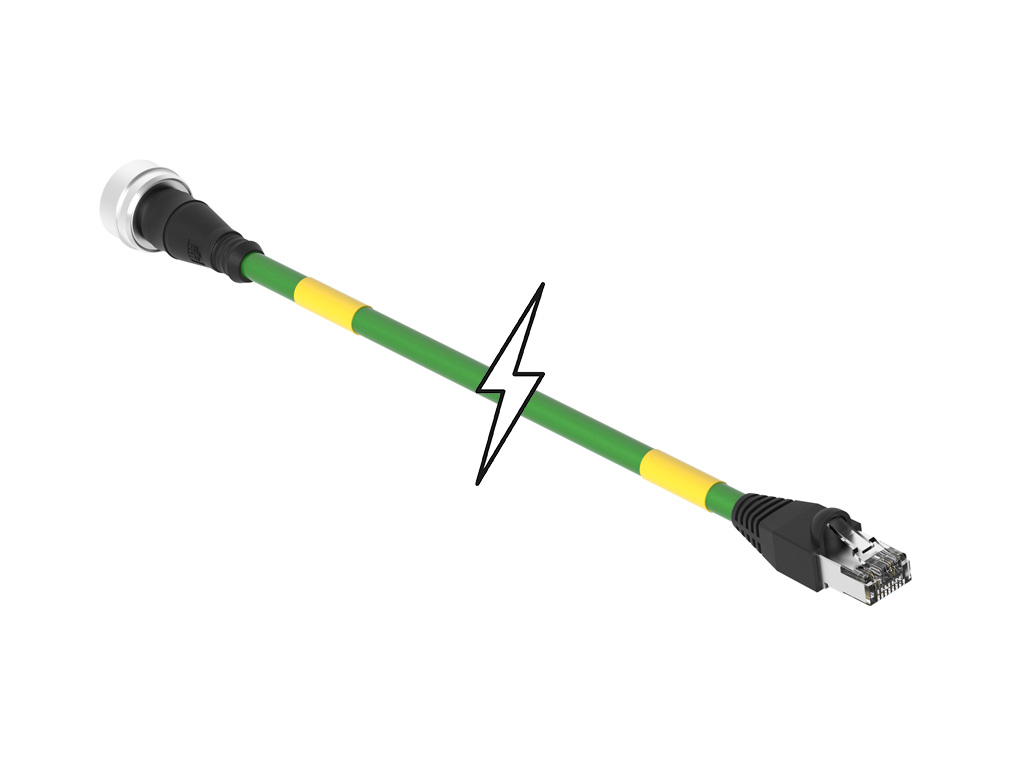

Ultra-Lock (M12) to Standard RJ-45 Double-Ended Cordset, 8 Poles, A-Coded, Male (Straight) to Male (Straight), 10.0m (32.81') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: | 120108-5049 |
Specifications
| Product Name | Ultra-Lock (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Cable Diameter | 6.00mm (.236") |
| Cable Length | 10.0m (32.81') |
| Color Cable Jacket | Green |
| Connector End A | Ultra-Lock (M12) |
| Connector End B | RJ-45 (standard) |
| Coupling Style | Push to Lock |
| Gender | Male-Male |
| Key Way | A-Coded |
| Led Indicator | None |
| Material Cable Jacket | TPU |
| Material Connector Body | TPU |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Orientation | Straight to Straight |
| Poles | 8 |
| Temperature Range Operating | -25° to +60°C |
| Wire Cable Type | Shielded-Stranded |
| Wire Size Awg | 26 |
