1201090005 M12 Data Push-Pull,Ultra-Lock (M12),Industrial Ethernet,RJ45 by Molex

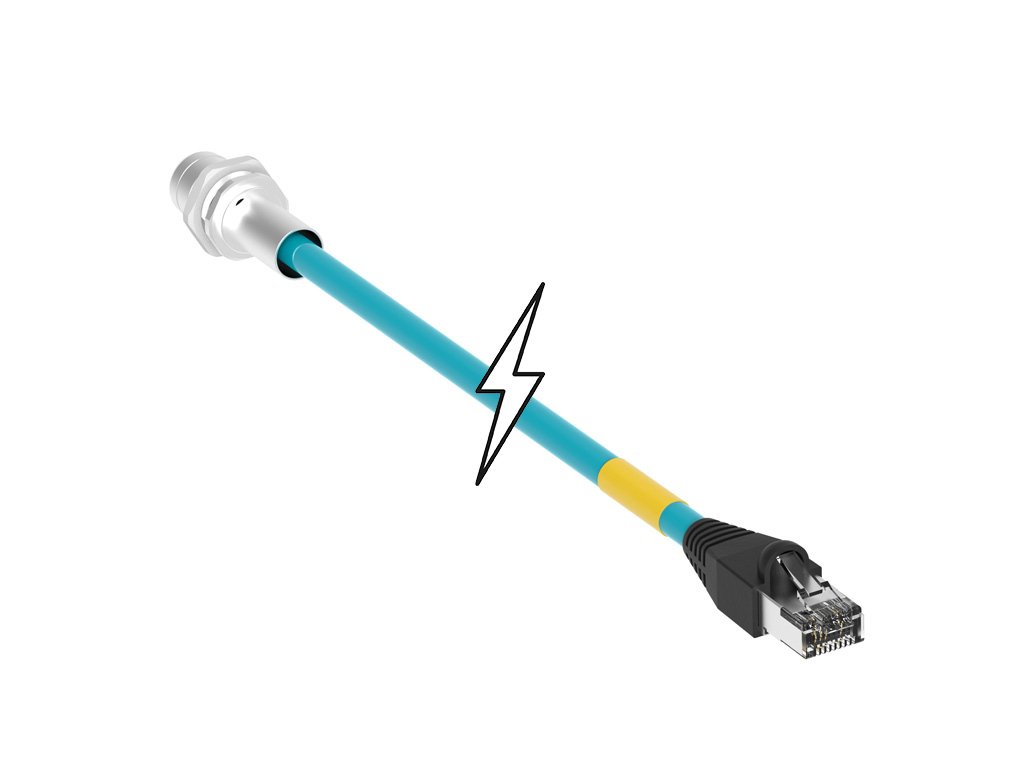

M12 Data, D-Coded, M12 Push-Pull Ultra-Lock Receptacle Cordset, 4 Poles, Female (Straight) to RJ45 Male (Straight), Back Panel Mount, M16x1.5 Mounting Threads, 2x2x24 AWG, Teal PVC Cable, 0.6m (1.968') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120109-0005,
ERWPAU7003M006 |
Specifications
| Product Name | M12 Data Push-Pull,Ultra-Lock (M12),Industrial Ethernet,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Coupling Type | Internal Thread, Push-Pull |
| Gender | Female-Male |
| Key Way | D-Coded |
| Length | 0.60m |
| Material Component | Nickel-plated Brass |
| Mounting Thread Size | M16 |
| Net Weight | 56.743/g |
| Orientation | Straight |
| Panel Mount | N/A |
| Poles | 4 |
| Temperature Range Operating | -20° to +75°C |
| Wire Cable Type | N/A |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
1201090005 Sensors & Transducers by Molex
SENSOR CORD M12 4P RCPT-RJ45 PLUG 2
| Status: | Unknown |
|---|---|
| Series: | Ultra-Lock 120109 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 4 Position Receptacle |
|---|---|
| Connector Type B | RJ45 Plug |
| Cable Length - Metric | 600mm |
| Cable Length - Imperial | 2ft |
| Product Range | Ultra-Lock 120109 Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ulock D-Code M12 Rec To Rj45 |Molex 1201090005 | Newark Electronics |
| Molex 1201090005 Sensor-/Aktor-Steckverbinder 1 St. | Conrad |
| Ethernet Cables / Networking Cables ULOCK D-CODE M12 REC TO RJ45 | Sager |
| ULOCK D-CODE M12 REC TO RJ45 | Heilind Americas |
