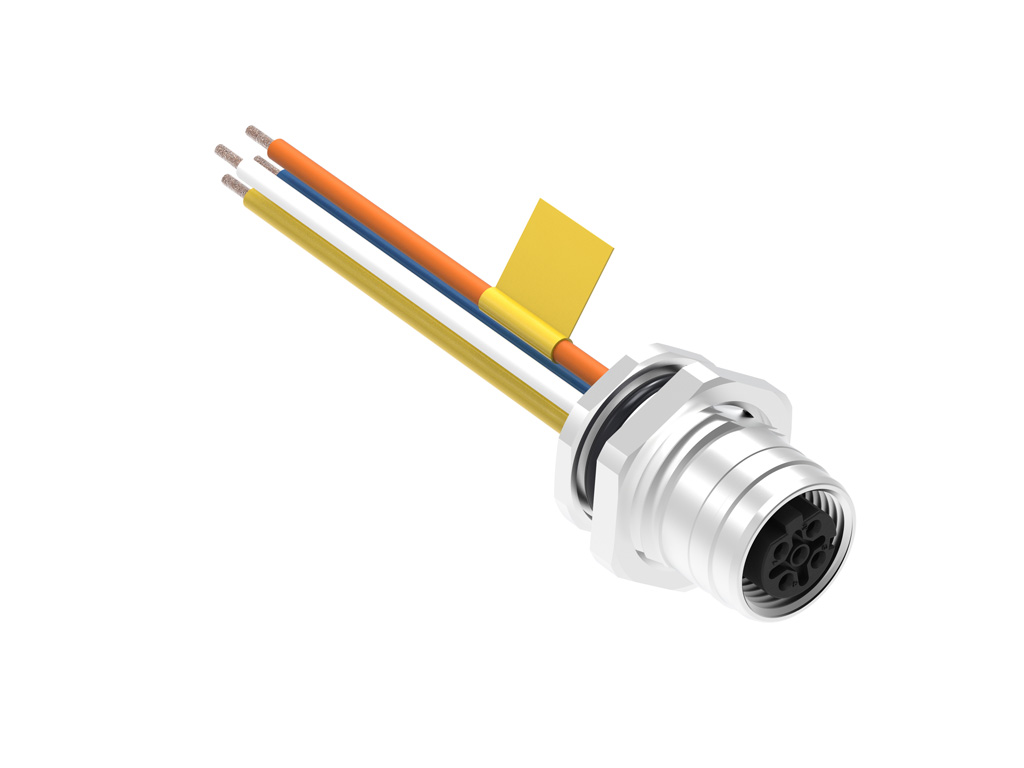

1201098001 M12 Data Push-Pull,Ultra-Lock (M12) by Molex
M12 Data, D-Coded, M12 Push-Pull Ultra-Lock Receptacle, 4 Poles, Female (Straight), Front Panel Mount, M16x1.5 Mounting Threads, 22 AWG, PVC Wires, 2000mm(6560') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120109-8001,
ERWAAU3000C200 |
Where to Buy
Prices starting from US$15.19
Specifications
| Product Name | M12 Data Push-Pull,Ultra-Lock (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Coupling Type | Internal Thread, Push-Pull |
| Gender | Female |
| Key Way | D-Coded |
| Length | 0.0195m |
| Material Component | Nickel-plated Brass |
| Mounting Thread Size | M16 x 1.5 |
| Net Weight | 1.000/g |
| Orientation | Straight |
| Panel Mount | Front |
| Poles | 4 |
| Temperature Range Operating | -10° to +80°C |
| Wire Cable Type | N/A |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
1201098001 Sensors & Transducers by Molex
SENSOR CORD 4P M12 RCPT-FREE END 0.8"
| Status: | Unknown |
|---|---|
| Series: | Ultra-Lock 120109 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 4 Position Receptacle |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 19.5mm |
| Cable Length - Imperial | 0.77" |
| Product Range | Ultra-Lock 120109 Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ul-M12-4P(D)-Fe.rec-200Mm-Pvc Rohs Compliant: Yes |Molex 1201098001 | Newark Electronics |
| Molex 1201098001 Sensor-/Aktor-Steckverbinder 1 St. | Conrad |
| CABLES M12 REC FPM 4P FEM DCODE PC | Farnell |
| Sensor Cables / Actuator Cables ULTRA-LOCK M12 ETHERNET REC FM | Sager |
| UL-M12-4P(D)-FE.REC-200MM-PVC ERWAAU3000C200 | Heilind Americas |
