1202480520 Brad Safety,MPIS by Molex

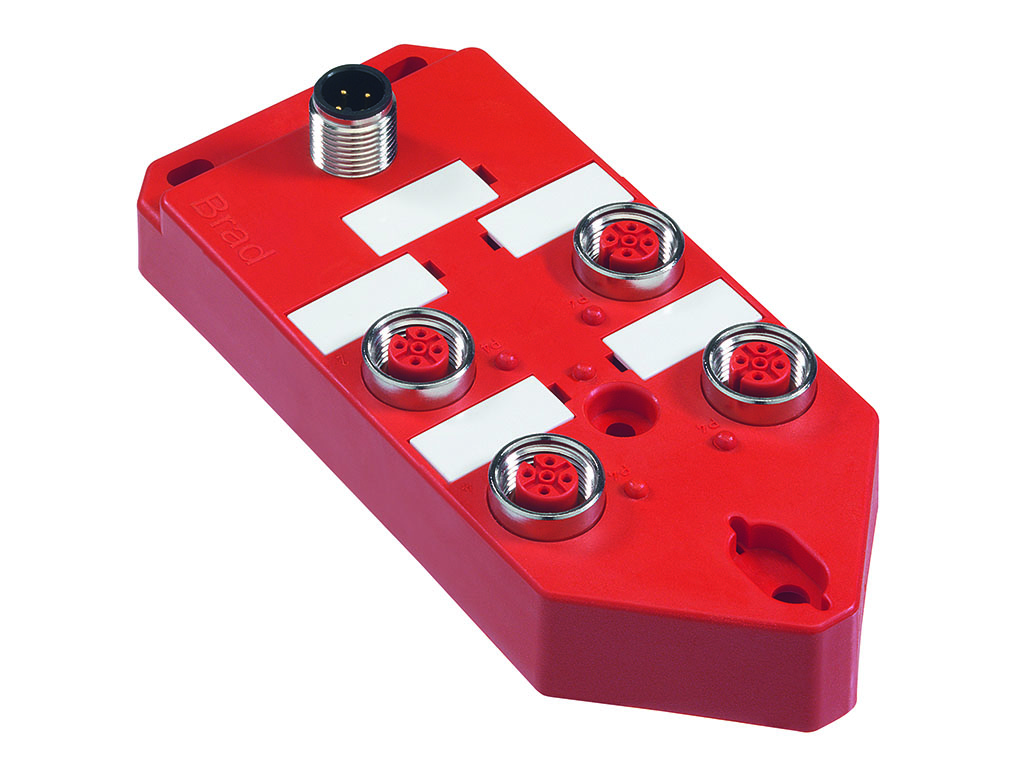

Brad Safety MPIS Distribution Box, Top-Mount, 4 Ports / 5-Pole, LED, with Integral M12 (4-Pole) Home Run Connector
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120248-0520,
BTR4300-FBF |
Where to Buy
Prices starting from US$46.19
Specifications
| Product Name | Brad Safety,MPIS |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 12.0A per module, 4.0A per port |
| Functional Wiring | Safety |
| Voltage Maximum | 10-30V DC |
| Wiring Configuration | Safety Wiring |
Physical |
|
|---|---|
| Bus Io | N/A |
| Cable Connector Orientation | N/A |
| Homerun Cable Length | N/A |
| Homerun Connector | Micro-Change (M12) - 4 pole |
| Homerun Interface | Integrated Connector |
| Key Way | A-Coded |
| Led Indicator | Safety |
| Material Cable Jacket | N/A |
| Material Housing | PBT |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Net Weight | 209.890/g |
| Orientation | Top-Mount |
| Poles | 5 |
| Poles Wired | 5 |
| Ports | 4 |
| Temperature Range Operating | -25° to +85°C |
Last 6 months Inventory & Pricing History
120248-0520 Sensors & Transducers by Molex
DISTRIBUTION BOX MPIS 4PORT
| Status: | Unknown |
|---|---|
| Series: | Micro-Change Series |
| RoHS: | Unknown |
Specifications
| Cable Length | - |
|---|---|
| No. of Ports | 4Ports |
| Product Range | Micro-Change Series |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mpis M12 Safety Nos 5P 4Pt Ac Fe 4P Ma A |Molex 1202480520 | Newark Electronics |
| Distribution box | TME |
| SENSOR DISTRIBUTION BOXES | Farnell |
| MPIS M12 SAFETY NOS 5P 4PT AC FE 4P MA A | Heilind Americas |
| Circular Metric Connectors SAFETY MPIS M12 DISTRY BOX TM | Sager |
