1203410500 Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet by Molex

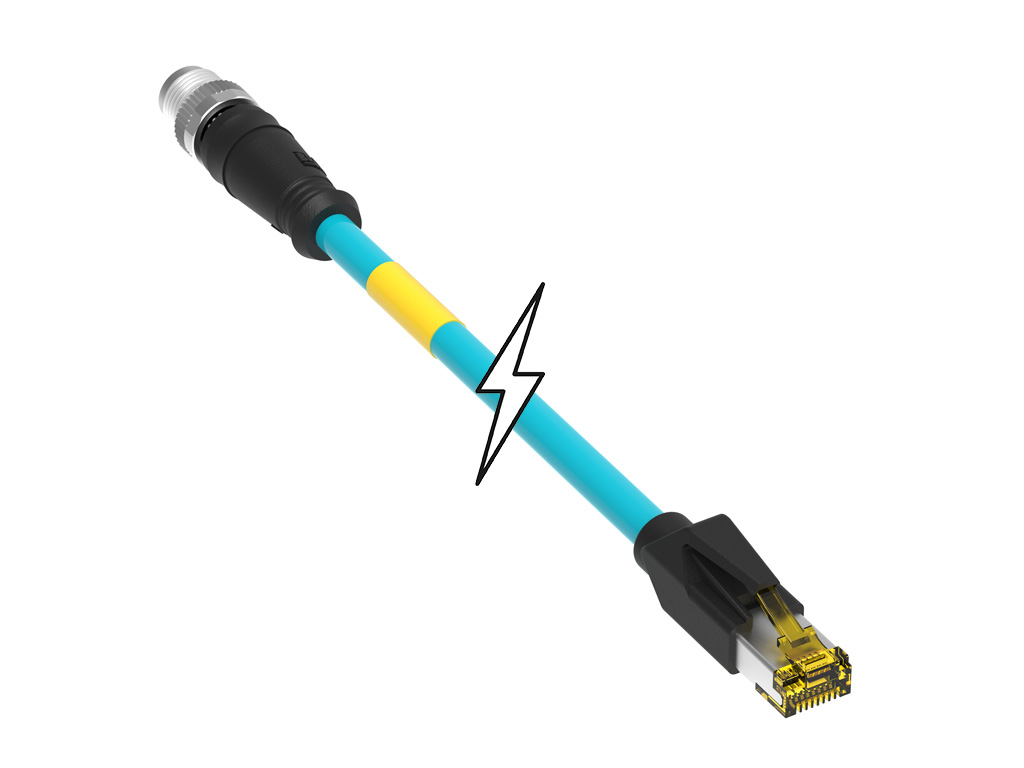

Micro-Change (M12) to Standard RJ-45 CAT6A Double-Ended Cordset, 8 Poles, X-Coded, Male (Straight) to Male RJ-45 (Straight), 26 AWG, Green Shielded PUR Cable, 0.50m (1.64') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120341-0500,
E26E06020M005 |
Where to Buy
Prices starting from US$56.41
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$100.84
|
12
in stock
|
Buy Now |
|
element14
from US$107.57
|
12
in stock
|
Buy Now |
|
Farnell
from US$95.67
|
12
in stock
|
Buy Now |
|
Avnet America
from US$72.33
|
0
in stock
|
Buy Now |
|
RS Americas
from US$112.72
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$104.49
|
0
in stock
|
Buy Now |
|
Sager
from US$76.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$75.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$56.41
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 30V AC (RMS) / 42V DC |
Physical |
|
|---|---|
| Cable Diameter | 6.90mm (.272”) |
| Cable Length | 0.50m (1.64') |
| Color Cable Jacket | Green |
| Connector End A | Micro-Change (M12) |
| Connector End B | RJ-45 (standard) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | X-Coded |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | PUR |
| Material Contact | Brass |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Gold |
| Net Weight | 759.750/g |
| Orientation | Straight to Straight |
| Poles | 8 |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | Shielded PUR |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sensor Cord, 8P M12 Plug-Rj45 Plug19.7" | Newark Electronics |
| SENSOR CORD, 8P M12 PLUG-RJ45 PLUG19.7" | element14 |
| Sensor Cable, M12, Micro-Change Plug, RJ45 Plug, 8 Positions, 500 mm, 19.7 "" | Avnet America |
| MICRO-CHANGE M12-RJ45 CORDSET | TTI Americas |
| Ethernet Cables / Networking Cables MICRO-CHANGE M12-RJ45 CORDSET | Sager |
| CORDSET M12 TO RJ45 CAT6A BLUE E26E06020M005 | Heilind Americas |
