1203410508 Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet by Molex

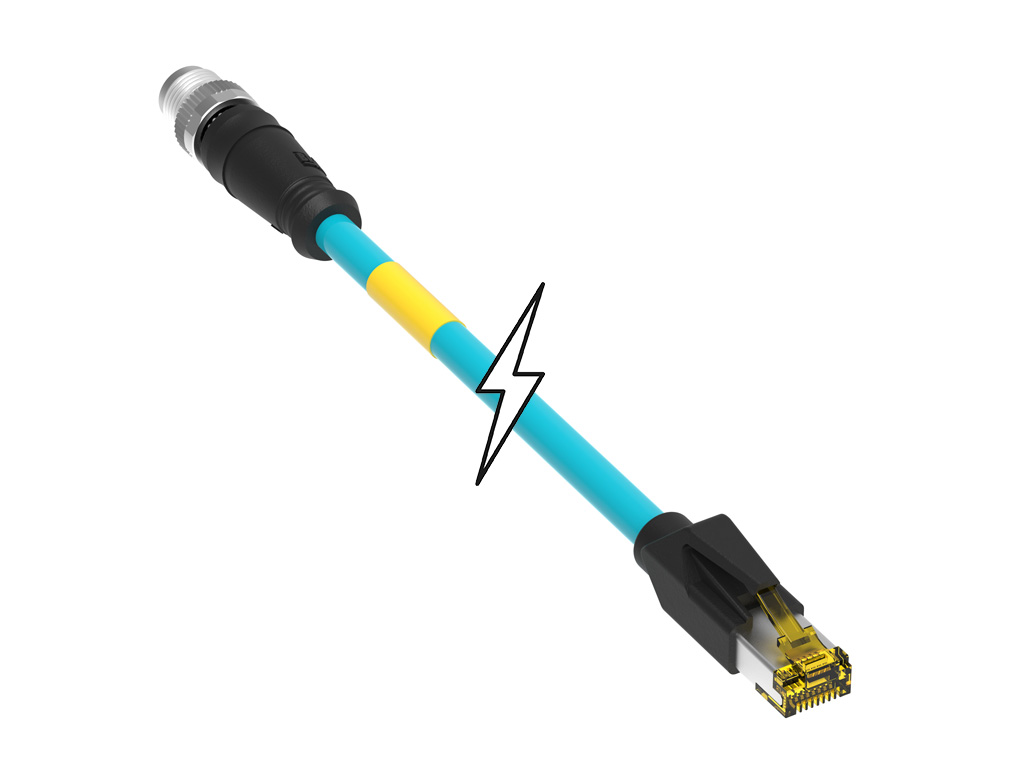

Micro-Change (M12) to Standard RJ-45 CAT6A Double-Ended Cordset, 8 Poles, X-Coded, Male (Straight) to Male RJ-45 (Straight), 26 AWG, Green Shielded PUR Cable, 20.0m (65.62') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120341-0508,
E26E06020M200 |
Where to Buy
Prices starting from US$239.22
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$374.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$318.99
|
0
in stock
|
Buy Now |
|
RS Americas
from US$452.41
|
0
in stock
|
Buy Now |
|
Sager
from US$324.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$319.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$239.22
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 30V AC (RMS) / 42V DC |
Physical |
|
|---|---|
| Cable Diameter | 6.90mm (.272”) |
| Cable Length | 20.0m (65.62') |
| Color Cable Jacket | Green |
| Connector End A | Micro-Change (M12) |
| Connector End B | RJ-45 (standard) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | X-Coded |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | PUR |
| Material Contact | Brass |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Gold |
| Net Weight | 1090.700/g |
| Orientation | Straight to Straight |
| Poles | 8 |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | Shielded PUR |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cse M12 Cat6A Rj45 8P Xc Ma Str Pur 20M |Molex 1203410508 | Newark Electronics |
| Micro Change Cordset to RJ-45 Straight 20M | Avnet America |
| Ethernet Cables / Networking Cables | Sager |
| CSE M12 CAT6A RJ45 8P XC MA ST E26E06020M200 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1203410508?
Additional datasheets, footprints and schematics for 1203410508 are listed on our Part Details page. You can also find images and similar parts to 1203410508 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1203410508 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1203410508 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1203410508 fall under?
The 1203410508 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1203410508 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1203410508 you can contact the distributor directly for product support, shipping queries etc.
Is the 1203410508 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1203410508 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, Sager and Heilind Americas have stock available or on a lead time for 1203410508.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1203410508 often in real-time on the comparison pages.
What if I can't find stock of 1203410508?
You can fill out our help required form which you can use to request a quote for 1203410508 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
