1203410750 Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet by Molex

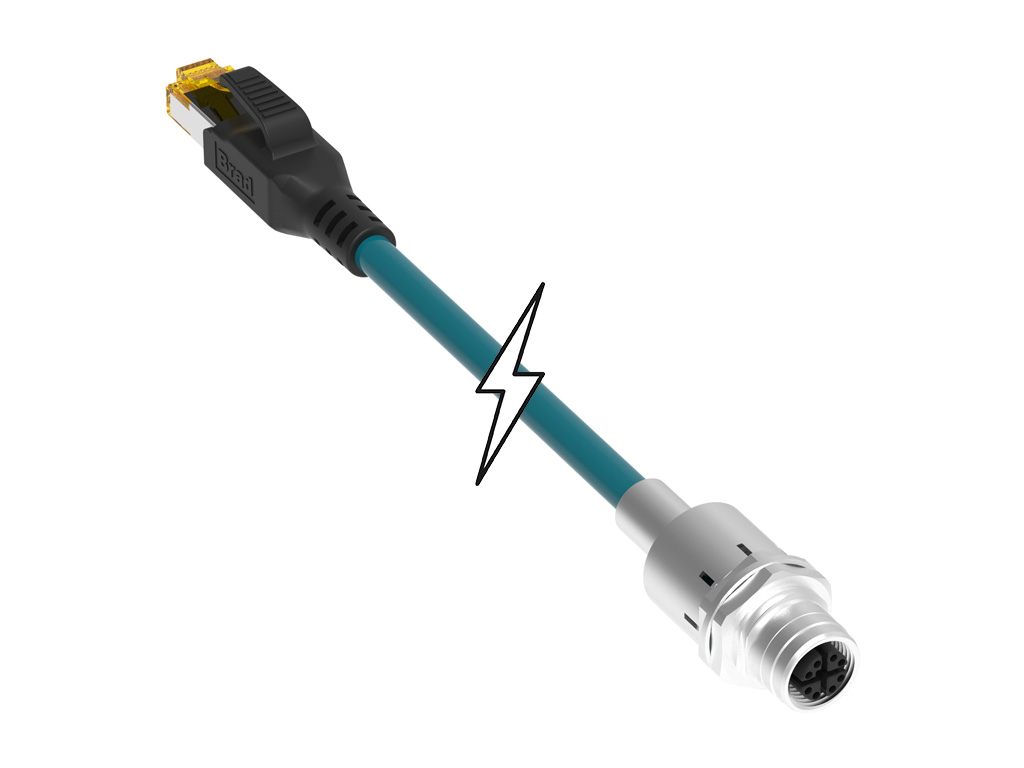

Micro-Change (M12) to Standard RJ-45 CAT6A Double-Ended Cordset, 8 Poles, X-Coded, Female (Straight) to Male RJ-45 (Straight), 26 AWG, Green Shielded PUR Cable, 0.50m (1.64') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
120341-0750,
ERWPEU7020M005 |
Where to Buy
Prices starting from US$61.32
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$79.53
|
4
in stock
|
Buy Now |
|
element14
from US$108.95
|
4
in stock
|
Buy Now |
|
Farnell
from US$107.39
|
4
in stock
|
Buy Now |
|
Sager
from US$84.88
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$83.53
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$61.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 30V AC (RMS) / 42V DC |
Physical |
|
|---|---|
| Cable Diameter | 6.90mm (.272”) |
| Cable Length | 0.50m (1.64') |
| Color Cable Jacket | Green |
| Connector End A | Micro-Change (M12) |
| Connector End B | RJ-45 (standard) |
| Coupling Style | Threaded |
| Gender | Female-Male |
| Key Way | X-Coded |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | PUR |
| Material Contact | Brass |
| Material Coupling Nut | Nickel-plated Brass |
| Material Oring | Fluoro-elastomer |
| Material Plating Mating | Gold |
| Net Weight | 66.600/g |
| Orientation | Straight to Straight |
| Poles | 8 |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | Shielded PUR |
| Wire Size Awg | 26 |
