1300060426 Mini-Change by Molex

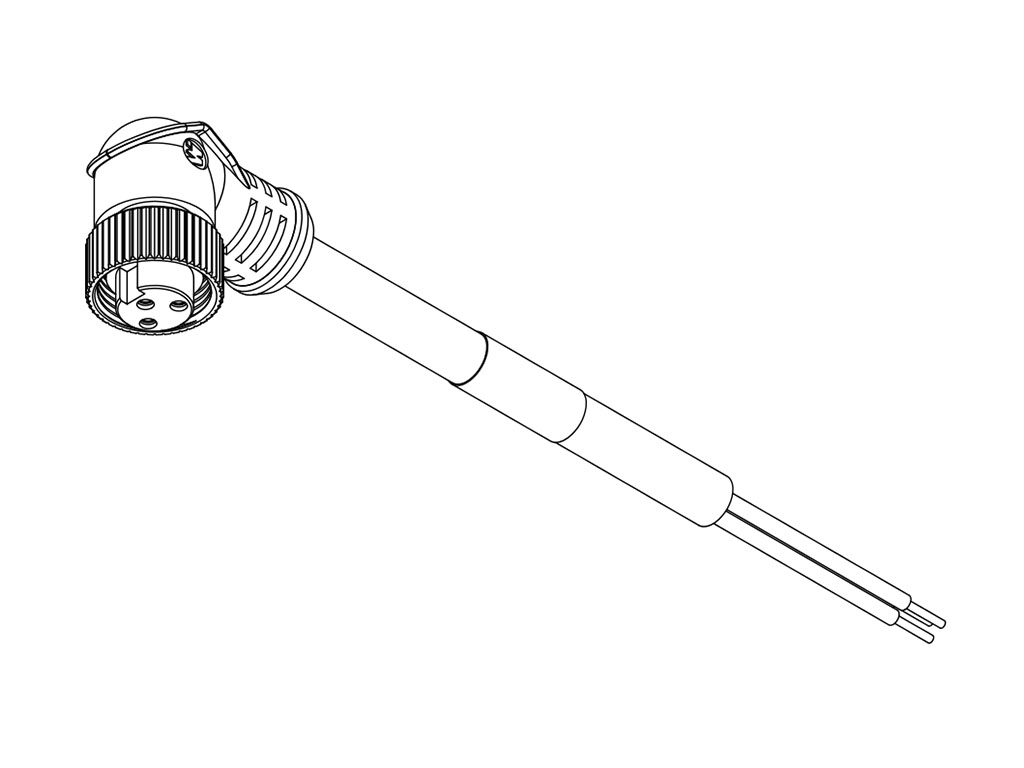

Mini-Change A-Size Single-Ended Cordset, 3 Poles, Female (90°) to Pigtail, 16 AWG, Yellow PVC Cable, 1.83m (6.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130006-0426,
103001A01F060 |
Where to Buy
Prices starting from US$23.34
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$36.66
|
17
in stock
|
Buy Now |
|
Newark Electronics
from US$34.50
|
16
in stock
|
Buy Now |
|
element14
from US$34.03
|
16
in stock
|
Buy Now |
|
RS Americas
from US$45.98
|
2
in stock
|
Buy Now |
|
Avnet America
from US$26.29
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$24.65
|
0
in stock
|
Buy Now |
|
Sager
from US$23.34
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$25.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$25.62
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 10.41mm (.410") |
| Cable Length | 1.83m (6.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 72.121/g |
| Orientation | 90° to Pigtail |
| Poles | 3 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
130006-0426 Sensors & Transducers by Molex
LEAD 3P A SIZE 90DG FEMALE 1.8M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | Mini-Change Size A |
|---|---|
| Connector Type B | Free End |
| Cable Length - Metric | 1.8m |
| Cable Length - Imperial | 5.91ft |
| Product Range | - |
| Accessory Type | Brad Mini-Change A-Size Cordset |
| Cable Length | 1.8m |
| For Use With | Sensors Encoders Switches Industrial Automation |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CORD, 7/8-16 SOC CONTACTS 3 POSITION RIGHT ANGLE PLUG | Farnell |
| Cord, 7/8-16 Soc Contacts 3 Position Right Angle Plug | Newark Electronics |
| Cable Assembly Pigtail 1.83m 16AWG 3 POS Circular F Bag | Avnet America |
| MINI-CHANGE A SINGLE-END CRDST | TTI Americas |
| Sensor Cables / Actuator Cables FEMALE 6' R/A 16/3 PVC | Sager |
| MC 3P FP 6' 90D 16/3 PVC 103001A01F060 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1300060426?
Additional datasheets, footprints and schematics for 1300060426 are listed on our Part Details page. You can also find images and similar parts to 1300060426 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1300060426 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1300060426 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1300060426 fall under?
The 1300060426 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1300060426 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1300060426 you can contact the distributor directly for product support, shipping queries etc.
Is the 1300060426 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1300060426 have stock available?
Authorised distributors including Farnell, Newark Electronics, element14, RS Americas and Avnet America have stock available or on a lead time for 1300060426.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1300060426 often in real-time on the comparison pages.
What if I can't find stock of 1300060426?
You can fill out our help required form which you can use to request a quote for 1300060426 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
