1300060744 Mini-Change by Molex

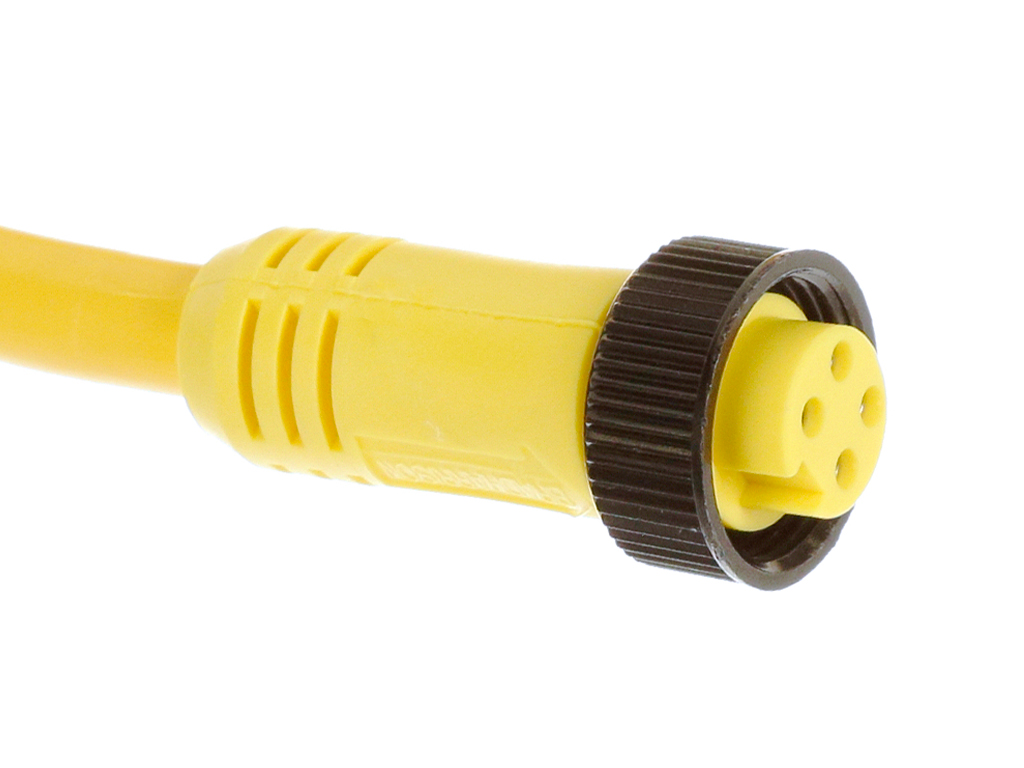

Mini-Change A-Size Single-Ended Cordset, 4 Poles, Female (Straight) to Pigtail, 16 AWG, Zinc Coupling Nut, Yellow PVC Cable, 6.10m (20.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130006-0744,
104000A01F200 |
Where to Buy
Prices starting from US$58.87
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$104.02
|
29
in stock
|
Buy Now |
|
Newark Electronics
from US$75.45
|
25
in stock
|
Buy Now |
|
TME
from US$68.54
|
7
in stock
|
Buy Now |
|
Conrad
from US$100.31
|
7
in stock
|
Buy Now |
|
Sager
from US$59.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$58.87
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$62.01
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 10.67mm (.420") |
| Cable Length | 6.10m (20.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 1012.870/g |
| Orientation | Straight to Pigtail |
| Poles | 4 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET | Farnell |
| Mc 4P Fp 20 16/4 Pvc |Molex 1300060744 | Newark Electronics |
| Connector: 7/8" | TME |
| Molex 1300060744 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables FEMALE 20' 16/4 PVC | Sager |
| MC 4P FP 20' 16/4 PVC 104000A01F200 | Heilind Americas |
