1300061353 Mini-Change by Molex

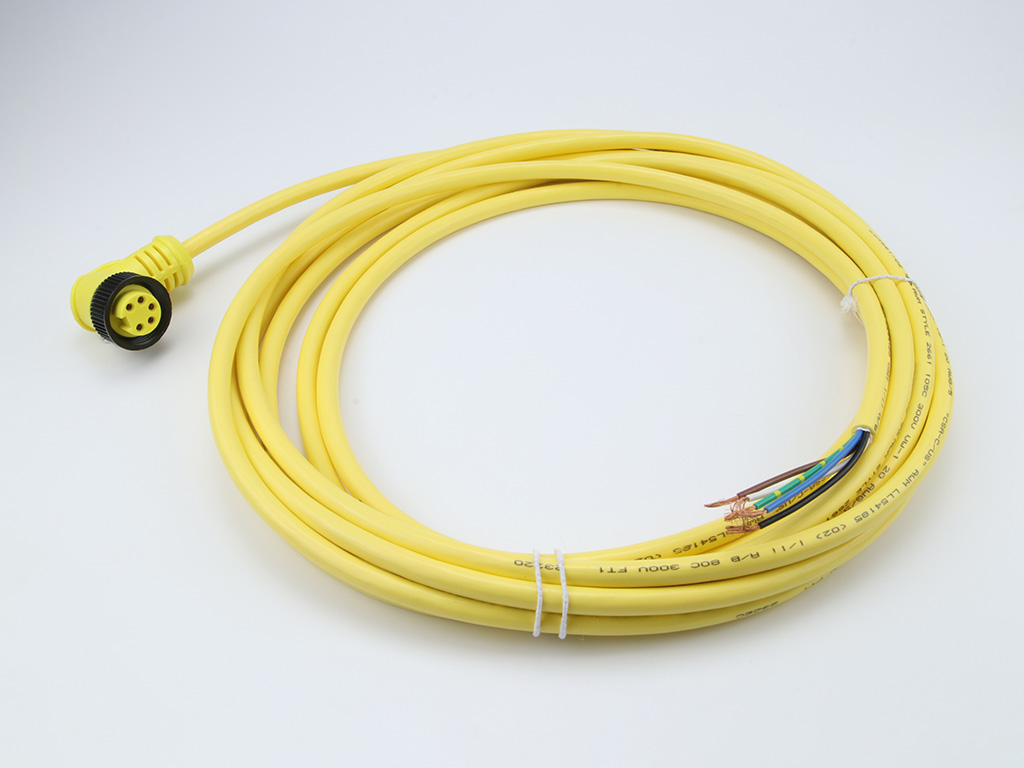

Mini-Change A-Size Single-Ended Cordset, 5 Poles, Female (90°) to Pigtail, 16 AWG, Yellow PVC Cable, 3.66m (12.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130006-1353,
105001A01F120 |
Where to Buy
Prices starting from US$42.48
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$55.00
|
5
in stock
|
Buy Now |
|
RS Americas
from US$82.36
|
1
in stock
|
Buy Now |
|
Avnet America
from US$55.71
|
0
in stock
|
Buy Now |
|
Conrad
from US$82.23
|
0
in stock
|
Buy Now |
|
Sager
from US$44.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$43.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$42.48
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 12.70mm (.500") |
| Cable Length | 3.66m (12.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 164.000/g |
| Orientation | 90° to Pigtail |
| Poles | 5 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sensor Cord, 5P R/A Rcpt-Free End, 12Ft | Newark Electronics |
| Cable Assembly Pigtail 3.66m 16AWG 5 POS Circular F | Avnet America |
| Molex 1300061353 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables MC 5P FP 12' 90D 16/5 PVC | Sager |
| OLD# 105001A01F120 MC 5P FP 12' 90D 16/5 PVC | Heilind Americas |
