1300061438 Mini-Change by Molex

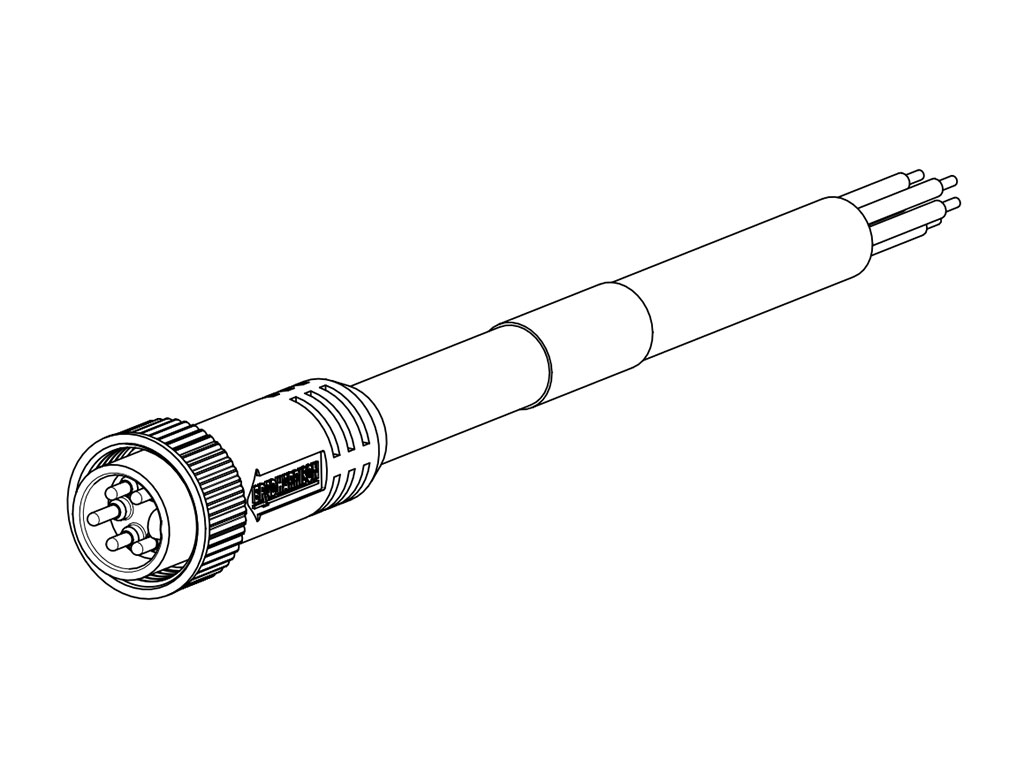

Mini-Change A-Size Single-Ended Cordset, 5 Poles, Male (Straight) to Pigtail, 16 AWG, Yellow PVC Cable, 1.83m (6.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130006-1438,
105002A01F060 |
Where to Buy
Prices starting from US$32.69
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$41.41
|
46
in stock
|
Buy Now |
|
element14
from US$48.99
|
0
in stock
|
Buy Now |
|
Conrad
from US$61.13
|
0
in stock
|
Buy Now |
|
Sager
from US$33.41
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$32.88
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$32.69
|
0
in stock
|
Buy Now |
|
Farnell
from US$43.44
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 12.70mm (.500") |
| Cable Length | 1.83m (6.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Male-Pigtail |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Brass |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 265.000/g |
| Orientation | Straight to Pigtail |
| Poles | 5 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
1300061438 Leads by Molex
CORD 7/8-16 PIN CONTACTS 5 POSITION STRAIGHT PLUG
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | 7/8" Sensor Straight 5 Position Plug |
|---|---|
| Connector Type B | Pigtail |
| Cable Length - Imperial | 6ft |
| Cable Length - Metric | 1.83m |
| Jacket Color | Yellow |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sensor Cord, 7/8"-16 Plug-Free End, 5.9 | Newark Electronics |
| CORD, 7/8-16 PIN CONTACTS, 5 POSITION, STRAIGHT PLUG | element14 |
| Molex 1300061438 Sensor-/Aktor-Steckverbinder, konfektioniert 1 St. | Conrad |
| Sensor Cables / Actuator Cables MC 5P MP 6' 1 6/5 PVC | Sager |
| MC 5P MP 6'16/5 PVC | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1300061438?
Additional datasheets, footprints and schematics for 1300061438 are listed on our Part Details page. You can also find images and similar parts to 1300061438 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1300061438 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1300061438 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1300061438 fall under?
The 1300061438 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1300061438 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1300061438 you can contact the distributor directly for product support, shipping queries etc.
Is the 1300061438 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1300061438 have stock available?
Authorised distributors including Newark Electronics, element14, Conrad, Sager and Heilind Americas have stock available or on a lead time for 1300061438.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1300061438 often in real-time on the comparison pages.
What if I can't find stock of 1300061438?
You can fill out our help required form which you can use to request a quote for 1300061438 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
