1300080325 Mini-Change by Molex

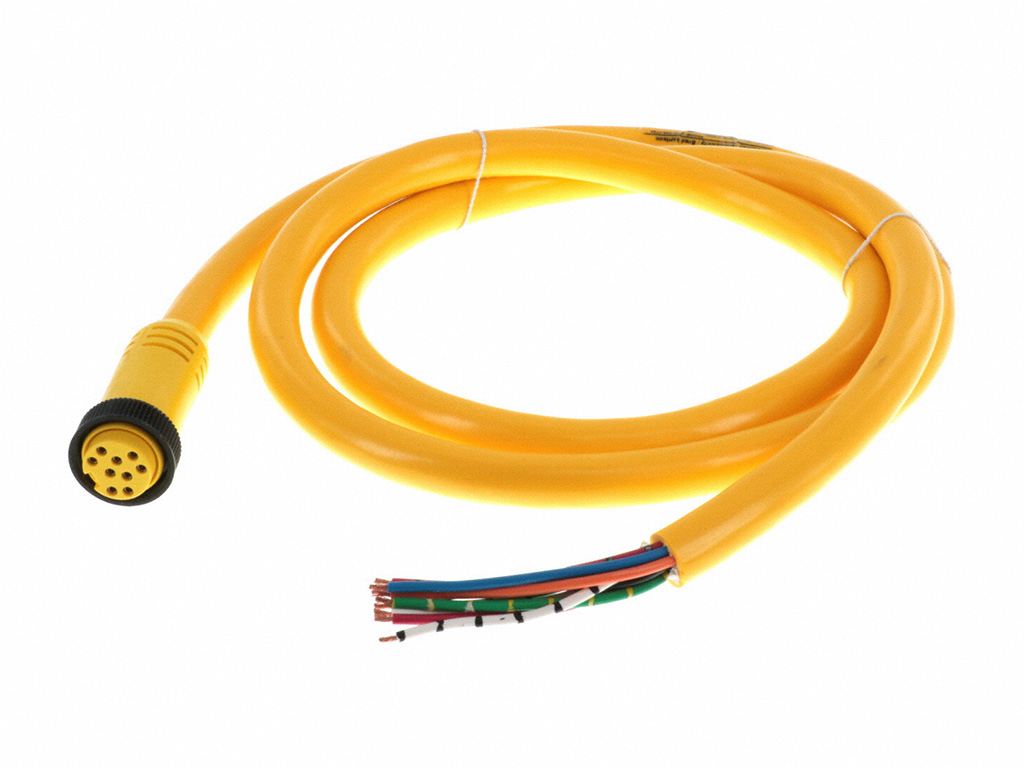

Mini-Change C-Size Single-Ended Cordset, 9 Poles, Female (Straight) to Pigtail, 16 AWG, Yellow PVC Cable, 1.83m (6.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130008-0325,
309000A01F060 |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 16.26mm (.640") |
| Cable Length | 1.83m (6.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Pigtail |
| Coupling Style | Threaded |
| Gender | Female-Pigtail |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Brass |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 195.000/g |
| Orientation | Straight to Pigtail |
| Poles | 9 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sensor Cord, Cir Rcpt-Free End, 5.9 | Newark Electronics |
| Sensor Cables / Actuator Cables MC 9P FP 6' 16/9 PVC | Sager |
| MC 6' PVC | Heilind Americas |
| MC 9P FP 6 16/9 PVC | Heilind Europe |
