1300100865 Mini-Change by Molex

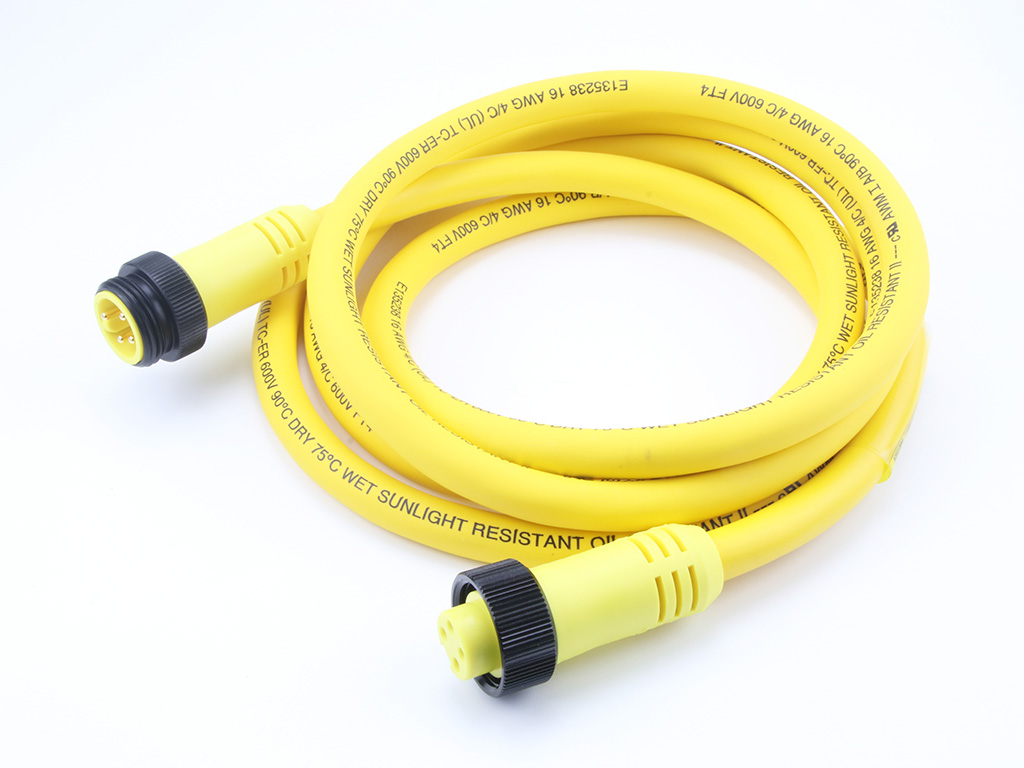

Mini-Change A-Size Double-Ended Cordset, 4 Poles, Male (Straight) to Female (Straight), 16 AWG, Yellow TPE Cable, 2.0m (6.56') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130010-0865,
114030K12M020 |
Where to Buy
Prices starting from US$51.59
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$53.86
|
133
in stock
|
Buy Now |
|
element14
from US$65.12
|
5
in stock
|
Buy Now |
|
Farnell
from US$86.27
|
5
in stock
|
Buy Now |
|
Newark Electronics
from US$60.70
|
4
in stock
|
Buy Now |
|
Conrad
from US$61.50
|
0
in stock
|
Buy Now |
|
Sager
from US$52.42
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$51.59
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 10.67mm (.420") |
| Cable Length | 2.0m (6.56') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Mini-Change |
| Coupling Style | Threaded |
| Gender | Female-Male |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | TPE |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 394.100/g |
| Orientation | Straight to Straight |
| Poles | 4 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | TC-ER |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
1300100865 Connectors by Molex
MC 4P M/MFE 2M 16/4 TPE FLX
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 114030K12M020 CORD ASSEMBLY MINI 4 PI | Heilind Europe |
| SENSOR CORD, 4P PLUG-RCPT, 6.6FT | element14 |
| Sensor Cord, 4P Plug-Rcpt, 6.6Ft | Newark Electronics |
| Molex 1300100865 Sensor-/Aktor-Steckverbinder, konfektioniert Buchse, Stecker 2.00 m Polzahl Sensoren: 4 1 St. | Conrad |
| Sensor Cables / Actuator Cables MC 4P M/MFE 2M 16/4 TPE FLX | Sager |
| MINI-CHANGE A DBLE-END CORDSET | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1300100865?
Additional datasheets, footprints and schematics for 1300100865 are listed on our Part Details page. You can also find images and similar parts to 1300100865 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1300100865 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1300100865 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1300100865 fall under?
The 1300100865 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1300100865 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1300100865 you can contact the distributor directly for product support, shipping queries etc.
Is the 1300100865 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1300100865 have stock available?
Authorised distributors including Heilind Europe, element14, Farnell, Newark Electronics and Conrad have stock available or on a lead time for 1300100865.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1300100865 often in real-time on the comparison pages.
What if I can't find stock of 1300100865?
You can fill out our help required form which you can use to request a quote for 1300100865 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
