1300478009 RJ45 Cat6A by Molex

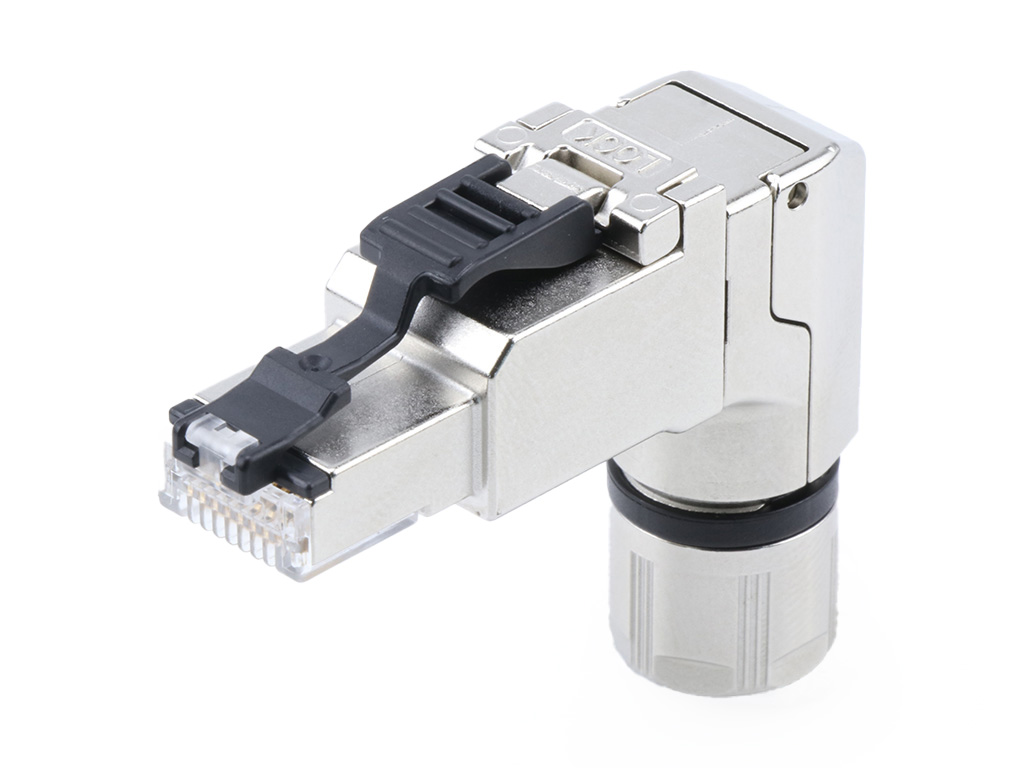

Brad RJ-45 Field Attachable Connector, 8 Poles, X-Coded, Right-Angle, Male, Shielded, IDC Termination, AWG 24-22
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130047-8009,
E6AS07-5 |
Where to Buy
Prices starting from US$24.53
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$41.01
|
10
in stock
|
Buy Now |
|
Farnell
from US$47.82
|
10
in stock
|
Buy Now |
|
RS
from US$42.43
|
2
in stock
|
Buy Now |
|
Newark Electronics
from US$49.29
|
2
in stock
|
Buy Now |
|
Offical Electronic
-
|
8
in stock
|
Buy Now |
|
TME
from US$29.24
|
0
in stock
|
Buy Now |
|
Conrad
from US$24.53
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$38.43
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$32.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$27.10
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | RJ45 Cat6A |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 48V |
Physical |
|
|---|---|
| Cable Diameter | 5.50-10.00mm (.216-.393") |
| Communication Speed | 10-Gigabit Ethernet |
| Coupling Type | Push to Lock |
| Diagnostics Leds | No |
| Diagnostics Port | No |
| Gender | Male |
| Key Way | None |
| Material Connector Body | Zinc Die-Cast with Nickel |
| Material Contact | Brass |
| Material Coupling Nut | Clear UL 94 V0 |
| Material Plating Mating | Gold |
| Net Weight | 22.582/g |
| Orientation | 90° Angle |
| Poles | 8 |
| Temperature Range Operating | -40° to +85°C |
| Wire Size Awg | 24-22/1 |
Last 6 months Inventory & Pricing History
130047-8009 Connectors by Molex
RJ45 ENET CONN CAT6A PLUG 8POS CABLE
| Status: | Unknown |
|---|---|
| Series: | 130047 Series |
| RoHS: | Unknown |
Specifications
| Modular Connector Type | RJ45 Plug |
|---|---|
| Port Configuration | 1 x 1 Port |
| No. of Positions / Loaded Contacts (per Port) | 8P8C |
| LAN Category | Cat6a |
| IP Rating | IP20 |
| Connector Mounting | Cable Mount |
| Connector Orientation | Right Angle |
| Shielding | Shielded |
| Magnetics | Without Magnetics |
| LEDs | Without LED |
| Light Pipes | Without Light Pipe |
| Product Range | 130047 Series |
| SVHC | No SVHC (12-Jan-2017) |
| Connector Type | RJ45 |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| No. of Contacts | 8 Contact |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RJ45 ENET CONN, CAT6A, PLUG, 8POS, CABLE | element14 |
| Molex 130047-8009 RJ45 Connector | RS |
| Fa Rj45 Cat6A 8P Ma Ra Shld Ipc Awg22 Rohs Compliant: Yes |Molex 1300478009 | Newark Electronics |
| Connector: RJ45 | TME |
| Molex Molex 1300478009 ENET Cordset PL/SPCL 1300478009 1 St. | Conrad |
| FA RJ45 CAT6A 8P MA RA SH | TTI Europe |
| BRAD RJ-45 FIELD ATTACHABLE CONNECTOR | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1300478009?
Additional datasheets, footprints and schematics for 1300478009 are listed on our Part Details page. You can also find images and similar parts to 1300478009 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1300478009 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1300478009 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1300478009 fall under?
The 1300478009 is listed under Circular Industrial Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1300478009 when available in the Circular Industrial Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1300478009 you can contact the distributor directly for product support, shipping queries etc.
Is the 1300478009 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1300478009 have stock available?
Authorised distributors including element14, Farnell, RS, Newark Electronics and Offical Electronic have stock available or on a lead time for 1300478009.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1300478009 often in real-time on the comparison pages.
What if I can't find stock of 1300478009?
You can fill out our help required form which you can use to request a quote for 1300478009 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
