1300480107 Micro-Change (M12) by Molex

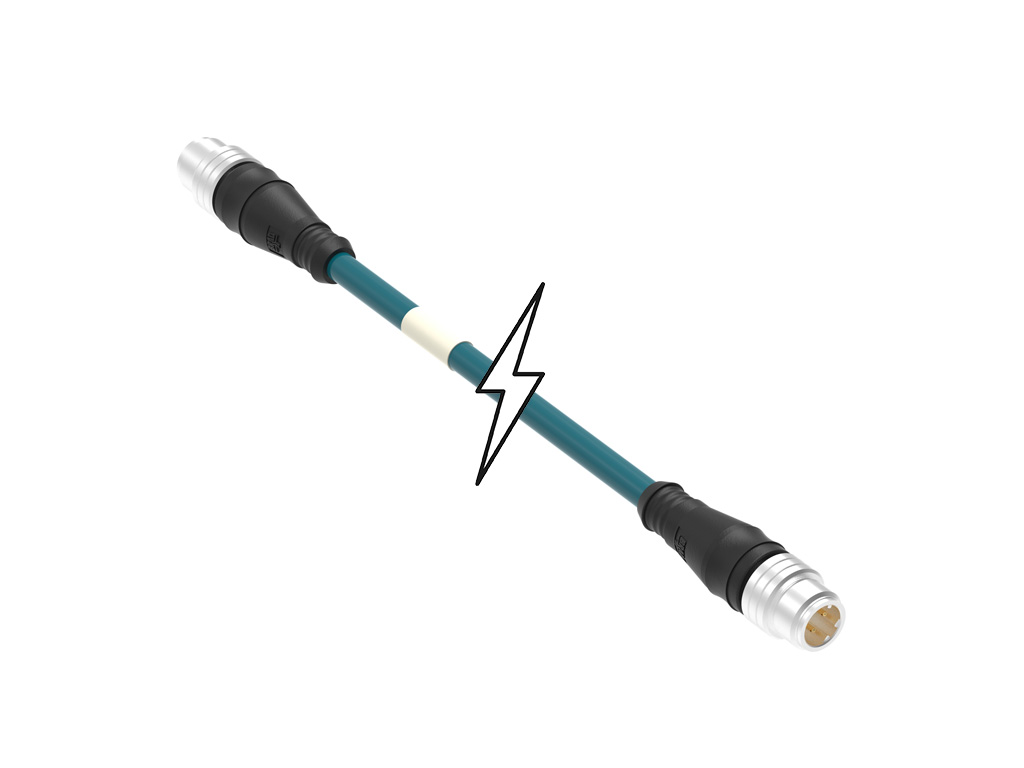

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (Straight) to Male (Straight), 24 AWG, Teal TPE Cable, 15.0m (49.21') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130048-0107,
E11A06004M150 |
Where to Buy
Prices starting from US$82.85
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$141.19
|
99
in stock
|
Buy Now |
|
Heilind Europe
from US$94.68
|
31
in stock
|
Buy Now |
|
Sager
from US$96.59
|
12
in stock
|
Buy Now |
|
Newark Electronics
from US$162.76
|
3
in stock
|
Buy Now |
|
RS Americas
from US$173.47
|
2
in stock
|
Buy Now |
|
Avnet America
from US$114.24
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$82.85
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$115.76
|
0
in stock
|
Buy Now |
|
Farnell
from US$180.02
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Diameter | 6.10mm (.240") |
| Cable Length | 15.0m (49.21') |
| Color Cable Jacket | Teal |
| Connector End A | Micro-Change (M12) |
| Connector End B | Micro-Change (M12) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | D-Coded |
| Led Indicator | None |
| Material Cable Jacket | TPE |
| Material Connector Body | TPE |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Gold |
| Net Weight | 0.612/kg |
| Orientation | Straight to Straight |
| Poles | 4 |
| Temperature Range Operating | -20° to +75°C |
| Wire Cable Type | Unshielded TPE/AWM 2463 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
130048-0107 BRAD Parts by Molex
SENSOR CORD 4P M12 PLUG-PLUG 15M
| Status: | Unknown |
|---|---|
| Series: | 130048 Series |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Straight 4 Position Plug |
|---|---|
| Connector Type B | M12 Sensor Straight 4 Position Plug |
| Cable Length - Metric | 15m |
| Cable Length - Imperial | 49.2ft |
| Product Range | 130048 Series |
| SVHC | No SVHC (15-Jan-2019) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-CHANGE M12 DBLEEND CRDST | TTI Americas |
| E11A06004M150 CABLE ETHERNET INDUSTRI | Heilind Europe |
| Sensor Cables / Actuator Cables MICRO-CHANGE M12 DBLEEND CRDST | Sager |
| Sensor Cord, 4P M12 Plug-M12 Plug, 15M | Newark Electronics |
| Micro-Change Double-Ended Cordset 4 Position Male Straight to Male Straight 24 AWG TPE 15m | Avnet America |
| MIC 4P M/MP ST/ST D-CODED | TTI Europe |
| SENSOR CORD, 4P M12 PLUG-M12 PLUG, 15M | Farnell |
