1300480170 Micro-Change (M12) by Molex

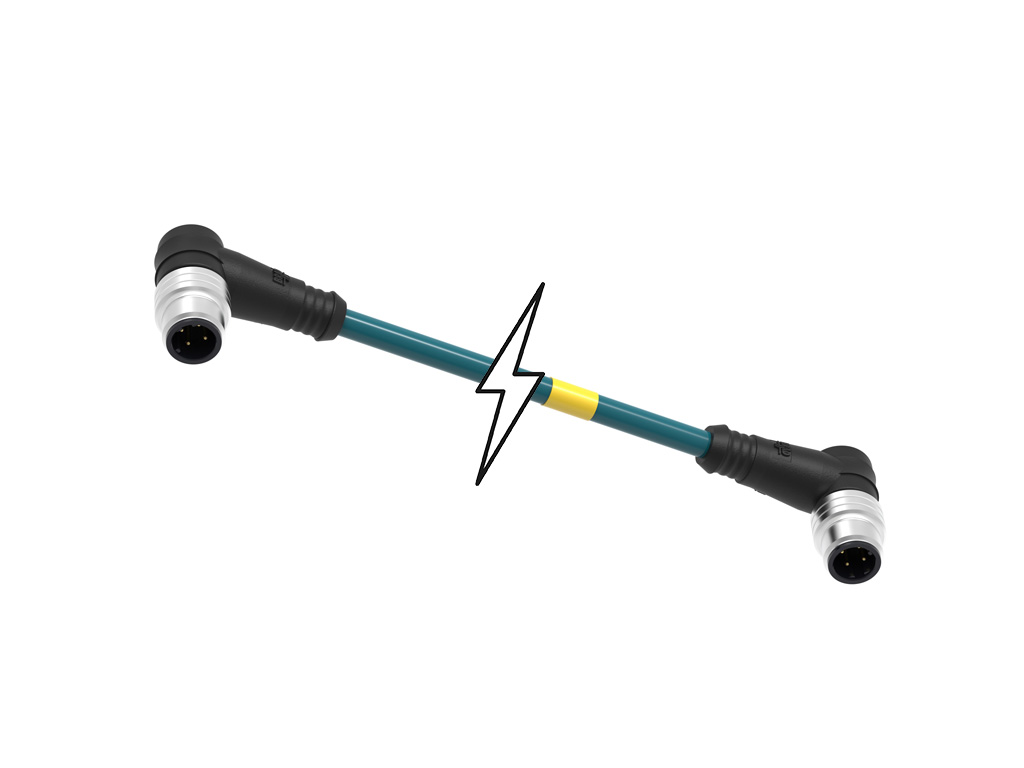

Micro-Change (M12) Double-Ended Cordset, 4 Poles, D-Coded, Male (90°) to Male (90°), 22 AWG, PUR Cable, 1.0m (3.28') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130048-0170,
E11A06310M010 |
Where to Buy
Prices starting from US$41.90
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$65.43
|
28
in stock
|
Buy Now |
|
Farnell
from US$73.81
|
26
in stock
|
Buy Now |
|
element14
from US$67.38
|
0
in stock
|
Buy Now |
|
Sager
from US$52.17
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$54.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$41.90
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Change (M12) |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 30V |
Physical |
|
|---|---|
| Cable Diameter | 5.59mm (.220") |
| Cable Length | 1.0m (3.28') |
| Color Cable Jacket | Teal |
| Connector End A | Micro-Change (M12) |
| Connector End B | Micro-Change (M12) |
| Coupling Style | Threaded |
| Gender | Male-Male |
| Key Way | D-Coded |
| Led Indicator | None |
| Material Cable Jacket | PUR |
| Material Connector Body | PUR |
| Material Contact | Copper Alloy |
| Material Coupling Nut | Nickel-plated Brass |
| Material Plating Mating | Gold over Palladium Nickel |
| Net Weight | 102.509/g |
| Orientation | 90° to 90° |
| Poles | 4 |
| Temperature Range Operating | -20° to +75°C |
| Wire Cable Type | N/A |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
1300480170 Sensors & Transducers by Molex
SENSOR CORD 4P M12 PLUG-PLUG 1M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | M12 Sensor Right Angle 4 Position Plug |
|---|---|
| Connector Type B | M12 Sensor Right Angle 4 Position Plug |
| Cable Length - Metric | 1m |
| Cable Length - Imperial | 3.3ft |
| Jacket Color | Green |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mic 4P M/Mp 90/90 D-Coded 1M Rohs Compliant: Yes |Molex 1300480170 | Newark Electronics |
| CABLE ASSY, 4P, R/A M12 PLUG-R/A PLUG/1M | Farnell |
| SENSOR CORD, 4P, M12 PLUG-PLUG, 1M | element14 |
| Sensor Cables / Actuator Cables MIC 4P M/MP 90/90 D-CODED 1M | Sager |
| MIC 4P M/MP 90/90 D-CODED 1M E11A06310M010 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1300480170?
Additional datasheets, footprints and schematics for 1300480170 are listed on our Part Details page. You can also find images and similar parts to 1300480170 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1300480170 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1300480170 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1300480170 fall under?
The 1300480170 is listed under Circular Industrial Cordsets.
Can I view similar or alternative parts?
You can view similar parts to 1300480170 when available in the Circular Industrial Cordsets range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1300480170 you can contact the distributor directly for product support, shipping queries etc.
Is the 1300480170 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1300480170 have stock available?
Authorised distributors including Newark Electronics, Farnell, element14, Sager and Heilind Americas have stock available or on a lead time for 1300480170.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1300480170 often in real-time on the comparison pages.
