1300570001 Brad,RJ-Lnxx by Molex

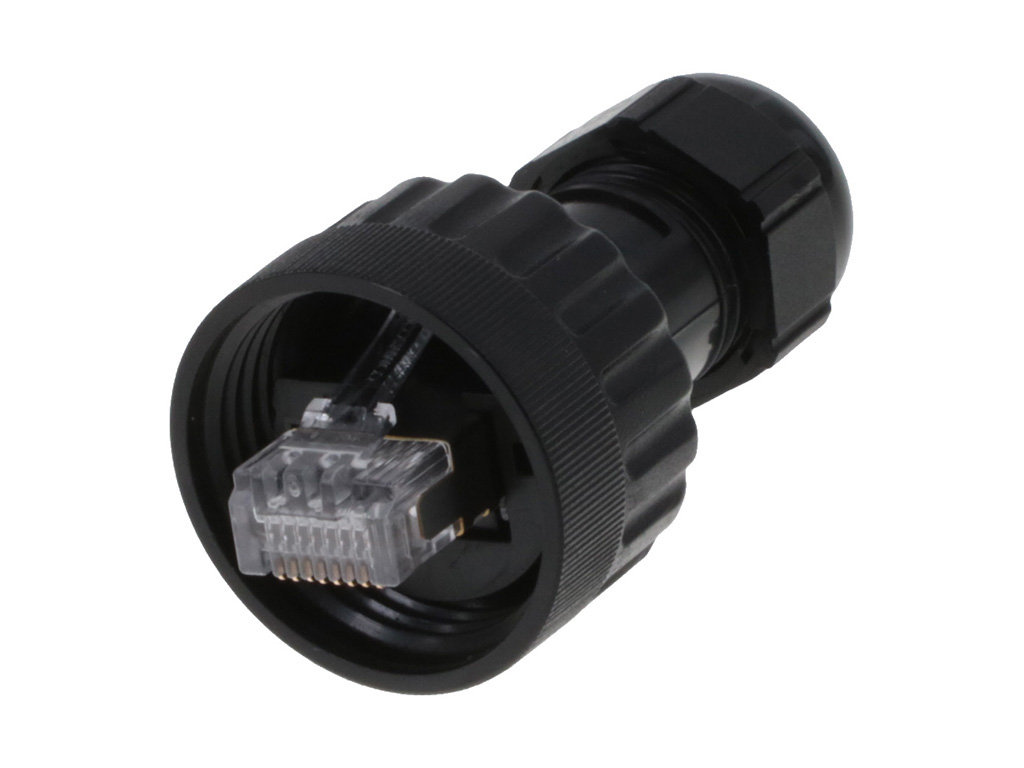

Brad RJ-Lnxx, Threaded, RJ-45 Ethernet Field-Attachable Connector for Stranded Core Cable
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130057-0001,
ENQAM315 |
Specifications
| Product Name | Brad,RJ-Lnxx |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Cable Diameter | N/A |
| Coupling Type | Internal Thread |
| Diagnostics Leds | No |
| Diagnostics Port | No |
| Gender | Male |
| Key Way | None |
| Material Connector Body | Polycarbonate |
| Material Contact | Copper Alloy |
| Material Coupling Nut | ABS |
| Material Plating Mating | n/a |
| Net Weight | 22.960/g |
| Orientation | Straight |
| Poles | N/A |
| Temperature Range Operating | -20° to +80°C |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cat5E Rj45 Modular Plug, 8 Position, 1 Port | Newark Electronics |
| Modular Connectors / Ethernet Connectors WOODHEAD (ENQAM315) | Sager |
