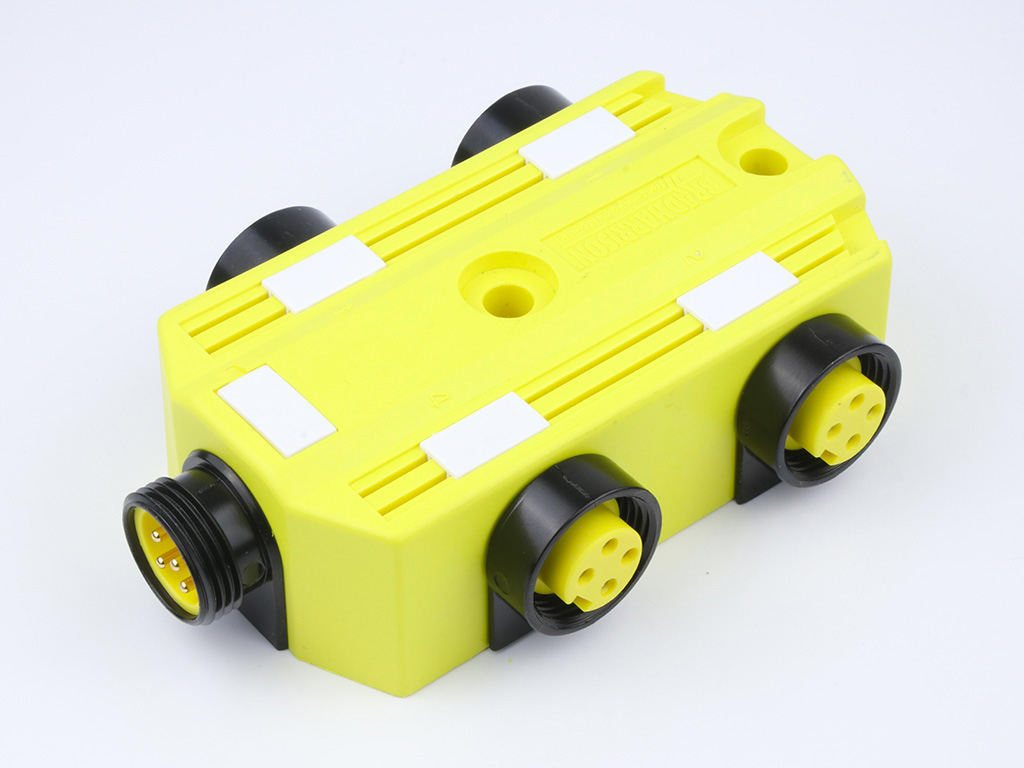

1300600065 DeviceNet,Mini-Change by Molex
Mini-Change 4 Pole, 4 Ports Drop DeviceNet Aux Power
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130060-0065,
DNAUX4000 |
Where to Buy
Prices starting from US$141.63
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$168.13
|
8
in stock
|
Buy Now |
|
TTI Americas
from US$178.34
|
5
in stock
|
Buy Now |
|
RS
from US$214.99
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$207.85
|
0
in stock
|
Buy Now |
|
Avnet America
from US$147.19
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$221.11
|
0
in stock
|
Buy Now |
|
element14
from US$213.39
|
0
in stock
|
Buy Now |
|
Sager
from US$141.63
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$149.15
|
0
in stock
|
Buy Now |
|
Farnell
from US$202.09
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DeviceNet,Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Functional Wiring | Parallel |
| Voltage Maximum | 600V AC/DC |
| Wiring Configuration | Single I/O per Port |
Physical |
|
|---|---|
| Bus Io | Mini-Change |
| Cable Connector Orientation | N/A |
| Cable Length | N/A |
| Homerun Cable Length | N/A |
| Homerun Connector | Mini-Change - 4 pole |
| Homerun Interface | Integrated Connector |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | N/A |
| Material Housing | PBT |
| Material Metal | Copper |
| Material Plating Mating | Gold |
| Net Weight | 662.697/g |
| Orientation | Side Mount |
| Poles | 4 |
| Poles Wired | 4 |
| Ports | 4 |
| Temperature Range Operating | 0° to +60°C |
Last 6 months Inventory & Pricing History
130060-0065 BRAD Parts by Molex
POWER DISTRIBUTION BOX 4PORT
| Status: | Unknown |
|---|---|
| Series: | 130060 Series |
| RoHS: | Unknown |
Specifications
| Cable Length | - |
|---|---|
| No. of Ports | 4Ports |
| Product Range | 130060 Series |
| SVHC | No SVHC (27-Jun-2018) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| DNAUX4000 DEVICENET 4 PORT PASS-TH | Heilind Europe |
| MINI-CHANGE 4P 4PORT AUX POWER | TTI Americas |
| Molex 1300600065 | RS |
| Sensor Distribution Box, Mini-Change-4P | Newark Electronics |
| Sensor Distribution Box, BRAD Mini-Change, Mini-Change - 4 Pole, Mini-Change - 4 Pole, 4 Ports | Avnet America |
| SENSOR DISTRIBUTION BOX, MINI-CHANGE-4P | element14 |
| Standard Circular Connector MINI-CHANGE 4P 4PORT AUX POWER | Sager |
| DeviceNet Mini-Change Distribution Box 4 Port 600VAC/DC 7A Single Keyway | Avnet Abacus |
