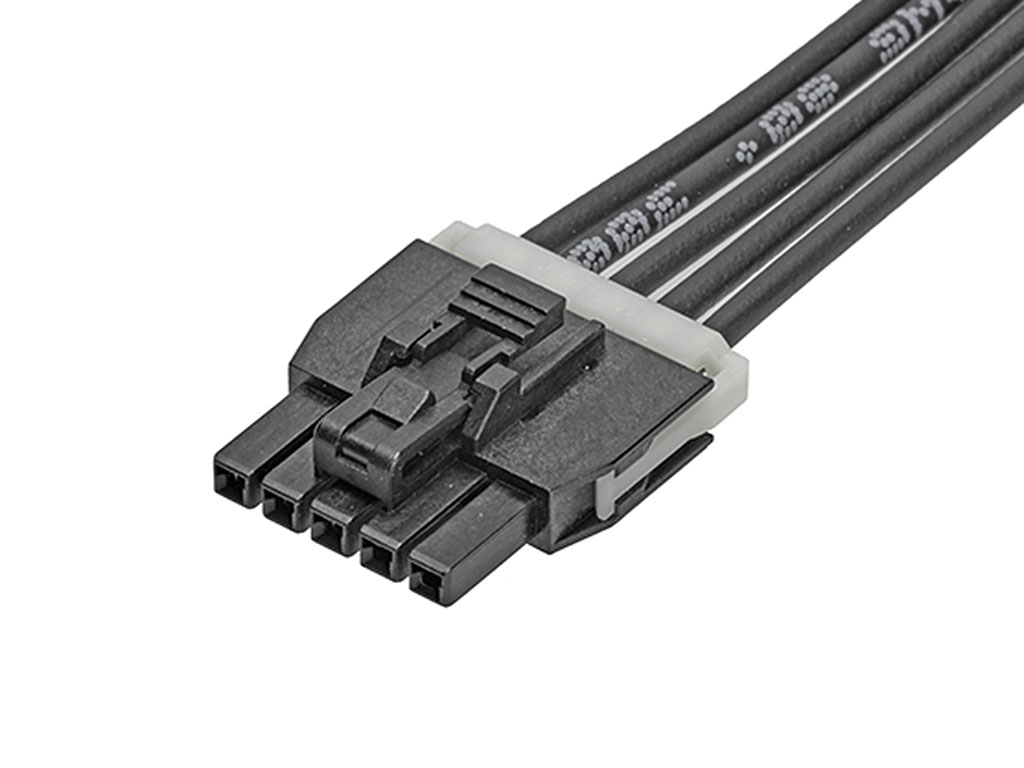

1451300501 Nano-Fit by Molex
Nano-Fit-to-Nano-Fit Off-the-Shelf (OTS) Cable Assembly, Single Row, Matte Tin (Sn) Plating, 150.00mm, 5 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 145130-0501 |
Where to Buy
Prices starting from US$2.02
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$3.42
|
150
in stock
|
Buy Now |
|
TME
from US$3.66
|
150
in stock
|
Buy Now |
|
Conrad
from US$3.36
|
150
in stock
|
Buy Now |
|
Farnell
from US$5.95
|
135
in stock
|
Buy Now |
|
Avnet America
from US$2.02
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.73
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.25
|
0
in stock
|
Buy Now |
|
Sager
from US$2.84
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 250V AC (RMS) |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 8.110/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Dc Power Cords Nano-Fit 150Mm Cbl Sr 5Ckt Blk Rohs Compliant: Yes |Molex 145130-0501 | Newark Electronics |
| Cable | TME |
| Molex 145130-0501 1 St. Bulk | Conrad |
| WIRE-TO-BOARD | Farnell |
| NANO-FIT-TO-NANO-FIT OFF-THE-SHELF (OTS) CABLE ASSEMBLY, SINGLE ROW, 150.00MM, 5 CIRCUITS, BLACK | Avnet America |
| NANO-FIT-TO-NANO-FIT CABLE ASSEMBLY, SINGLE ROW, 150MM, 5 CIRCUITS, BLACK | RS Americas |
| NANO-FIT OTS CBL ASSY 01X05P | TTI Americas |
| DC Power Cords NANO-FIT OTS CBL ASSY 01X05P | Sager |
