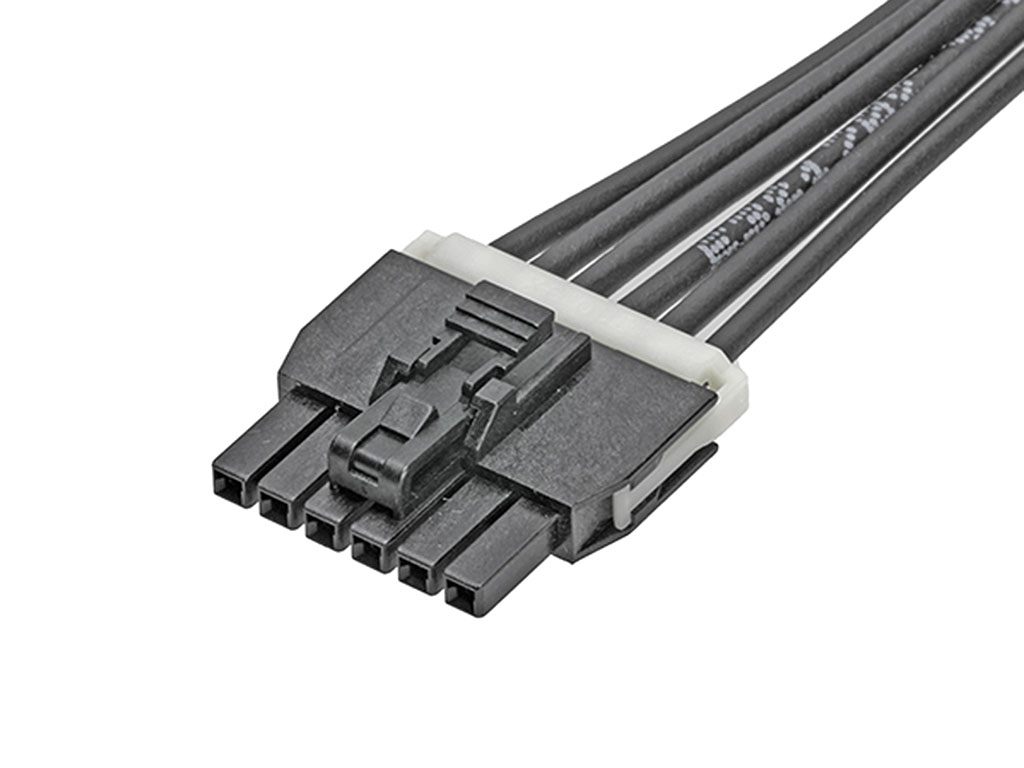

1451300601 Nano-Fit by Molex
Nano-Fit-to-Nano-Fit Off-the-Shelf (OTS) Cable Assembly, Single Row, Matte Tin (Sn) Plating, 150.00mm Length, 6 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 145130-0601 |
Where to Buy
Prices starting from US$2.68
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.06
|
438
in stock
|
Buy Now |
|
TME
from US$4.51
|
438
in stock
|
Buy Now |
|
Conrad
from US$4.05
|
438
in stock
|
Buy Now |
|
Farnell
from US$4.76
|
395
in stock
|
Buy Now |
|
RS
from US$6.48
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.68
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.34
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.24
|
0
in stock
|
Buy Now |
|
Sager
from US$2.85
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 250V AC (RMS) |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 9.670/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 20 |
