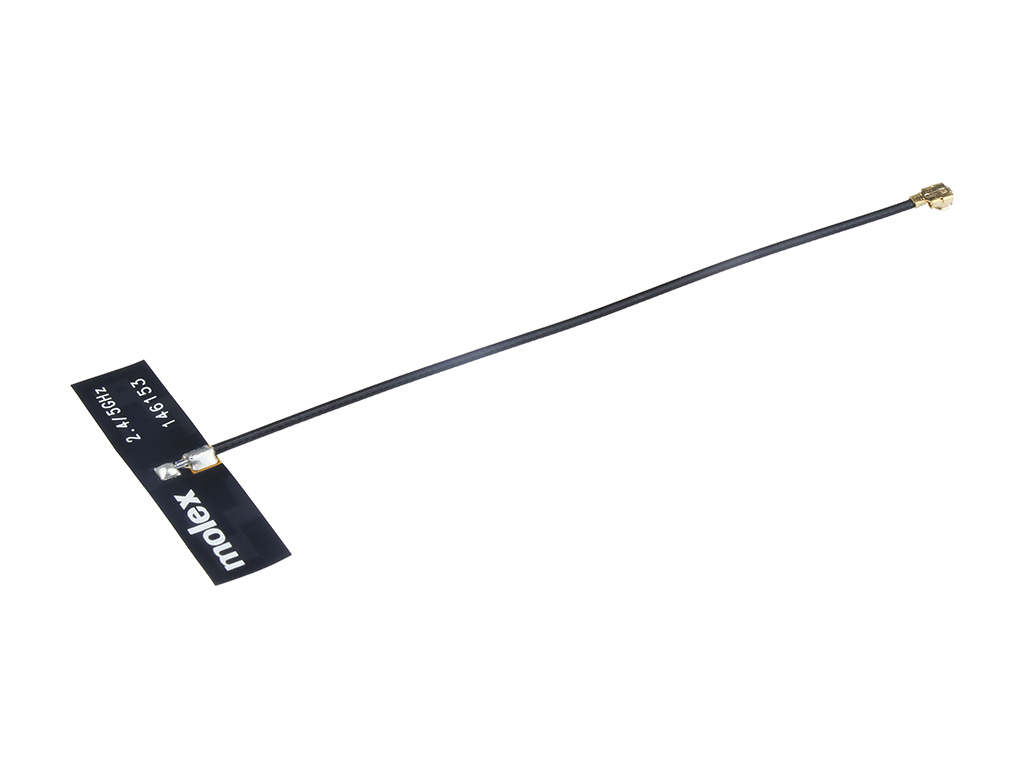

1461530100 2.4/5GHz Balanced Flex Antenna by Molex
Wi-Fi 6E Flex Cabled Balanced Antenna, 9.00mm Width, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146153-0100 |
Where to Buy
Prices starting from US$1.09
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.88
|
6,102
in stock
|
Buy Now |
|
element14
from US$1.73
|
6,102
in stock
|
Buy Now |
|
Farnell
from US$1.63
|
6,102
in stock
|
Buy Now |
|
TTI Europe
from US$1.38
|
3,200
in stock
|
Buy Now |
|
RS
from US$2.33
|
586
in stock
|
Buy Now |
|
TME
from US$1.96
|
415
in stock
|
Buy Now |
|
Rutronik
from US$1.89
|
320
in stock
|
Buy Now |
|
Micros
from US$1.90
|
208
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.29
|
125
in stock
|
Buy Now |
|
Conrad
from US$2.39
|
125
in stock
|
Buy Now |
|
Sager
from US$1.22
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.41
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.09
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Balanced Flex Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5930 |
| Band2f Start Mhz | 4900 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 3.0 @ 2.4 GHz, 4.0 @ 5 GHz |
| Return Loss S11db | < -10 |
| Total Efficiency | >75% @ 2.4 GHz, >75% @ 5 GHz |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 34.90mm |
| Mounting Style | Adhesive |
| Net Weight | 0.480/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 9.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Wifi Antenna, 4.9-5.93Ghz, 4Dbi | Newark Electronics |
| WIFI ANTENNA, 4.9-5.93GHZ, 4DBI | element14 |
| 2.4/5GHZ DUAL BAND ANTENNA | TTI Europe |
| 2.4GHz 5GHz Wifi Antenna w Cable 100mm | RS |
| Antenna | TME |
| FLEX DUAL BAND ANTENNA WI-FI | Rutronik |
| Antenna Wi-Fi 4dBi Gain 2483.5MHz/5930MHz Film | Micros |
| Molex 146153-0100 Antenna 9mm Width 100mm Cable Wi-Fi 6e U.fl Compatible | Rapid Electronics |
| Molex 146153-0100 Antenne 1 St. PET Film | Conrad |
| Antennas ANTENNA 2.4G/5G 100MM ASSY | Sager |
| 2.4GHZ/5GHZ WIFI STAND ALONE BALANCE ANTENNA, 9.00MM W 100. | Heilind Americas |
| ANTENNA 2.4G/5G 100MM ASSY | TTI Asia |
| RF Antenna, 4.9 to 5.93GHz, WiFi, 4dBi, 2W, Adhesive, Linear | Avnet Asia |
