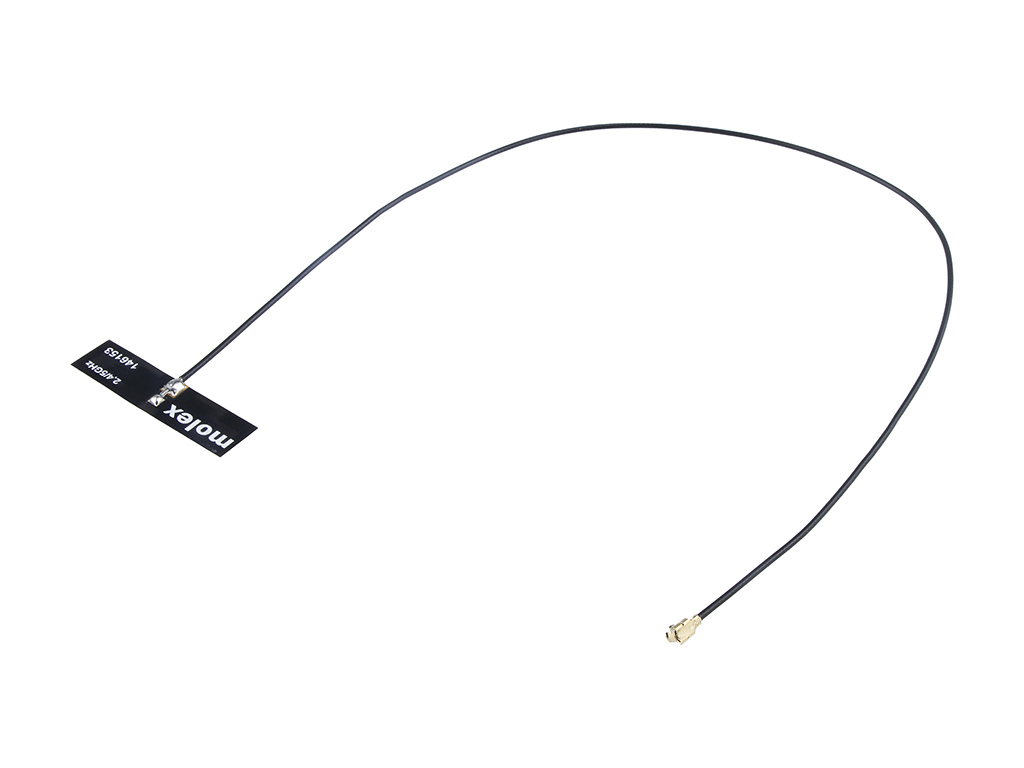

1461530300 2.4/5GHz Balanced Flex Antenna by Molex
Wi-Fi 6E Flex Cabled Balanced Antenna, 9.00mm Width, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146153-0300 |
Where to Buy
Prices starting from US$1.55
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$2.54
|
753
in stock
|
Buy Now |
|
RS
from US$2.12
|
744
in stock
|
Buy Now |
|
TME
from US$2.35
|
116
in stock
|
Buy Now |
|
Newark Electronics
from US$2.72
|
65
in stock
|
Buy Now |
|
element14
from US$2.51
|
65
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.68
|
45
in stock
|
Buy Now |
|
Conrad
from US$1.94
|
45
in stock
|
Buy Now |
|
TTI Europe
from US$1.97
|
0
in stock
|
Buy Now |
|
Sager
from US$1.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.55
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.66
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.87
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Balanced Flex Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5930 |
| Band2f Start Mhz | 4900 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.2 @ 2.4 GHz, 2.8 @ 5 GHz |
| Return Loss S11db | < -10 |
| Total Efficiency | >59% @ 5 GHz, >63% @ 2.4 GHz |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Length | 34.90mm |
| Mounting Style | Adhesive |
| Net Weight | 1.060/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.10mm |
| Width | 9.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RF ANTENNA, 4.9 TO 5.93GHZ, 2.8DBI | Farnell |
| 2.4/5G dual band Flex*300mm assy | RS |
| Antenna | TME |
| Wifi Antenna, 4.9-5.85Ghz, 2.8Dbi | Newark Electronics |
| WIFI ANTENNA, 4.9-5.93GHZ, 2.8DBI | element14 |
| Molex 146153-0300 Antenna Wi-Fi 6e Flex 9mm Width 300mm Cable | Rapid Electronics |
| Molex 146153-0300 Antenne 1 St. PET Film | Conrad |
| 2.4/5G DUAL BAND FLEX 300MM | TTI Europe |
| Antennas ANTENNA 2.4G/5G 300MM ASSY | Sager |
| ANTENNA 2.4G/5G 300MM ASSY | TTI Asia |
