1461750001 2.4/5GHz SMT OnGround MID Chip by Molex

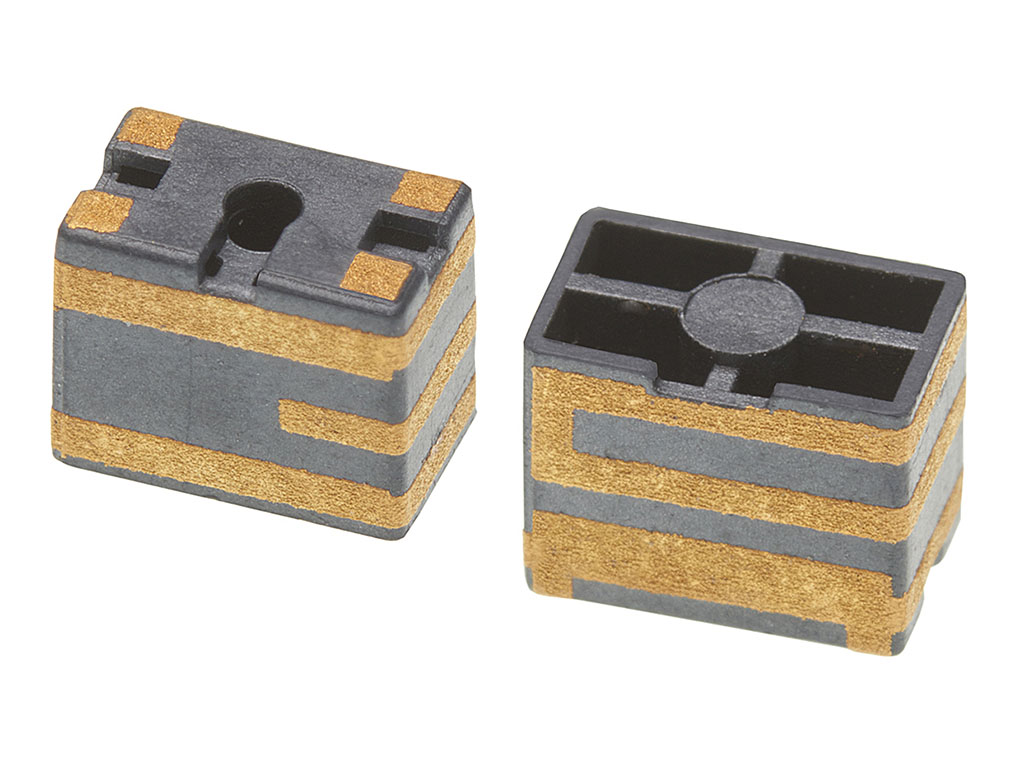

2.4GHz / 5GHz SMT MID Chip Antenna, 5.00mm by 3.00mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146175-0001 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
Sager
from US$0.72
|
23,100
in stock
|
Buy Now |
|
Conrad
from US$1.48
|
9,000
in stock
|
Buy Now |
|
Farnell
from US$1.00
|
8,250
in stock
|
Buy Now |
|
element14
from US$0.83
|
5,969
in stock
|
Buy Now |
|
RS
from US$0.94
|
400
in stock
|
Buy Now |
|
Newark Electronics
from US$0.35
|
7
in stock
|
Buy Now |
|
Rutronik
from US$0.79
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.51
|
0
in stock
|
Buy Now |
|
TME
from US$0.73
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.33
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.71
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.56
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz SMT OnGround MID Chip |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | SMD |
| Peak Gain Dbi | 3.0 @ 2.4 GHz, 4.2 @ 5 GHz |
| Return Loss S11db | < -6 |
| Total Efficiency | >70% |
Physical |
|
|---|---|
| Cable Length | N/A |
| Length | 5.00mm |
| Mounting Style | Surface Mount |
| Net Weight | 0.058/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 4.00mm |
| Width | 3.00mm |
