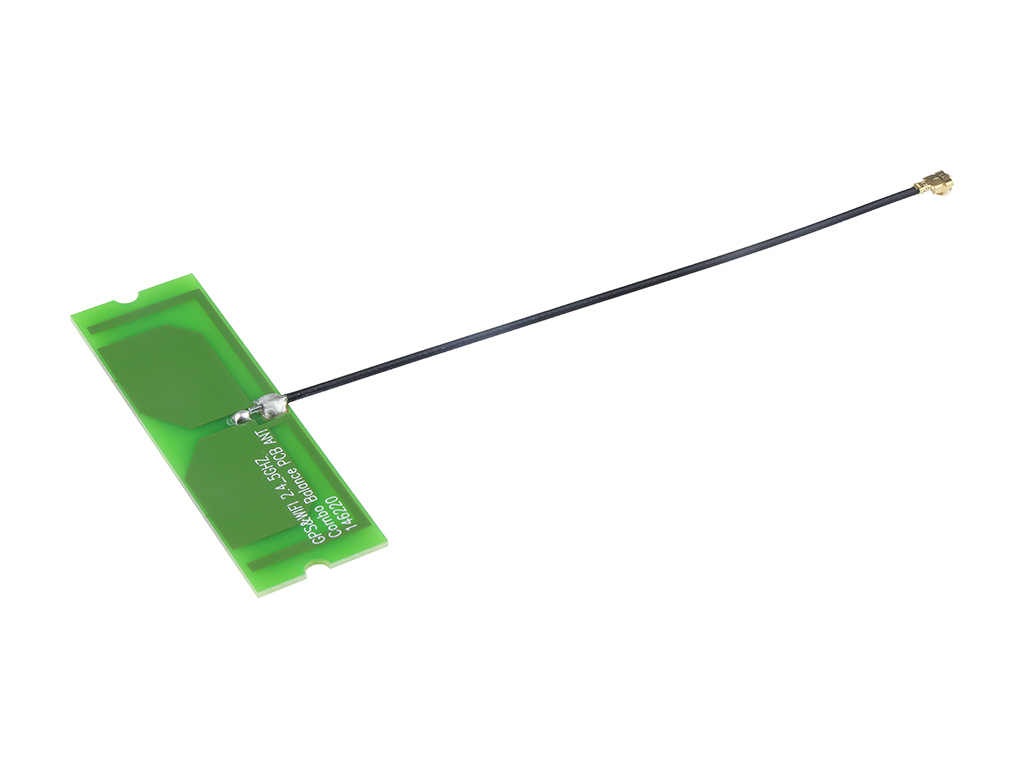

1462200100 2.4/5GHz GPS-Wi-Fi Antenna by Molex
Wi-Fi 6E+GNSS PCB Cabled Balanced Antenna, 16.60mm Width, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146220-0100 |
Where to Buy
Prices starting from US$1.47
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.83
|
19,299
in stock
|
Buy Now |
|
Farnell
from US$2.28
|
17,376
in stock
|
Buy Now |
|
Newark Electronics
from US$2.77
|
274
in stock
|
Buy Now |
|
element14
from US$1.99
|
274
in stock
|
Buy Now |
|
TME
from US$2.56
|
75
in stock
|
Buy Now |
|
RS Americas
from US$1.47
|
50
in stock
|
Buy Now |
|
|
RS
from US$2.03
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.96
|
0
in stock
|
Buy Now |
|
Sager
from US$1.98
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz GPS-Wi-Fi Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 1602 |
| Band1f Start Mhz | 1575.42 |
| Band2f End Mhz | 2483.5 |
| Band2f Start Mhz | 2400 |
| Band3f End Mhz | 5850 |
| Band3f Start Mhz | 5150 |
| Band4f End Mhz | 6000 |
| Band4f Start Mhz | 3000 |
| Electrical Connectivity | Cable |
| Peak Gain Dbi | 2.4 @ 1575 MHz, 2.9 @ 2.4 GHz, 3.5 @ 3 GHz, 3.8 @ 5 GHz |
| Return Loss S11db | < -8 |
| Total Efficiency | >78% @ 3 GHz, >80% @ 2.4 GHz, >82% @ 1575 MHz, >83% @ 5 GHz |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Length | 53.50mm |
| Mounting Style | Screw-Nut |
| Net Weight | 1.794/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 0.81mm |
| Width | 16.60mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1462200100 1 St. Tape on Full reel | Conrad |
| RF ANTENNA, 3 TO 6GHZ, 3.5DBI | Farnell |
| Gps Wifi Combo Pcb Ant*100Mm | Newark Electronics |
| GPS WIFI COMBO PCB ANT*100MM | element14 |
| Antenna | TME |
| GPS & WIFI 2.4GHZ/5GHZ COMBO PCB ANTENNA, 16.60MM WIDTH, LENGTH 100.00MM | RS Americas |
| GPS WIFI COMBO PCB ANT*100mm | RS |
| PCB Antenna, Quad Band, Linear, 1.575 GHz to 1.602 GHz, 2.4 GHz to 2.483 GHz, 5.15 GHz to 5.85 GHz | Avnet America |
| Antennas 2.4GHZ/5GHZ GPS WIFI ANTENNA | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1462200100?
Additional datasheets, footprints and schematics for 1462200100 are listed on our Part Details page. You can also find images and similar parts to 1462200100 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1462200100 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1462200100 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1462200100 fall under?
The 1462200100 is listed under Antennas.
Can I view similar or alternative parts?
You can view similar parts to 1462200100 when available in the Antennas range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1462200100 you can contact the distributor directly for product support, shipping queries etc.
Is the 1462200100 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1462200100 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, element14 and TME have stock available or on a lead time for 1462200100.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1462200100 often in real-time on the comparison pages.
What if I can't find stock of 1462200100?
You can fill out our help required form which you can use to request a quote for 1462200100 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
