1462350001 Helix SMT GPS Antenna by Molex

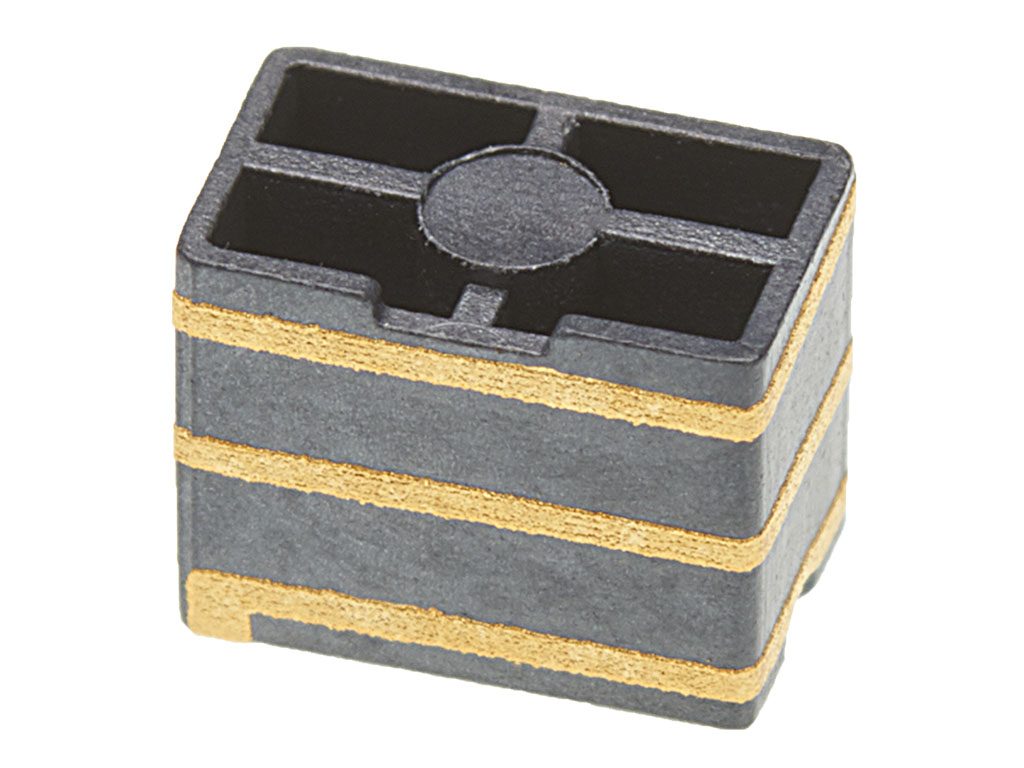

Helix SMT GPS Antenna
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 146235-0001 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.71
|
19,350
in stock
|
Buy Now |
|
Farnell
from US$0.79
|
17,600
in stock
|
Buy Now |
|
TTI Americas
from US$0.52
|
1,650
in stock
|
Buy Now |
|
element14
from US$0.76
|
1,483
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
248
in stock
|
Buy Now |
|
Rutronik
from US$0.81
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.38
|
0
in stock
|
Buy Now |
|
TME
from US$0.52
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.01
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.74
|
0
in stock
|
Buy Now |
|
Sager
from US$0.53
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.52
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.63
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.14
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Helix SMT GPS Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 1566 |
| Band1f Start Mhz | 1556 |
| Band2f End Mhz | 1580 |
| Band2f Start Mhz | 1571 |
| Band3f End Mhz | 1607 |
| Band3f Start Mhz | 1597 |
| Electrical Connectivity | SMD |
| Peak Gain Dbi | 0.7 @ 1561 MHz, 1.1 @ 1575 MHz, 1.1 @ 1602 MHz |
| Return Loss S11db | < -8 |
| Total Efficiency | >50% @ 1561 MHz, >50% @ 1602 MHz, >55% @ 1575 MHz |
Physical |
|
|---|---|
| Cable Length | N/A |
| Length | 5.00mm |
| Mounting Style | Surface Mount |
| Net Weight | 0.058/g |
| Polarization | Elliptic |
| Radiation Pattern | Omnidirectional |
| Thickness | 4.00mm |
| Width | 3.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 146235-0001 Antenne 1 St. Tape on Full reel | Conrad |
| RF ANTENNA, 1.597 TO 1.607GHZ, 1.1DBI | Farnell |
| GPS HELIX SMT ANTENNA | TTI Americas |
| GPS ANTENNA, 1.597-1.607GHZ, 1.1DBI | element14 |
| Gps Antenna, 1.597-1.607Ghz, 1.1Dbi | Newark Electronics |
| Surface m. GPS Helix antenna | Rutronik |
| Helix Chip Antenna, Triple Band, Linear, 1.556 GHz to 1.566 GHz, 1.571 GHz to 1.58 GHz | Avnet America |
| Antenna | TME |
| ANTENNAS, HELIX SMT GPS | RS Americas |
| Antennas GPS HELIX SMT ANTENNA | Sager |
| Antenna,Helix GPS LDSMID SMT | Heilind Americas |
