1501801020 Standard .062"+ by Molex

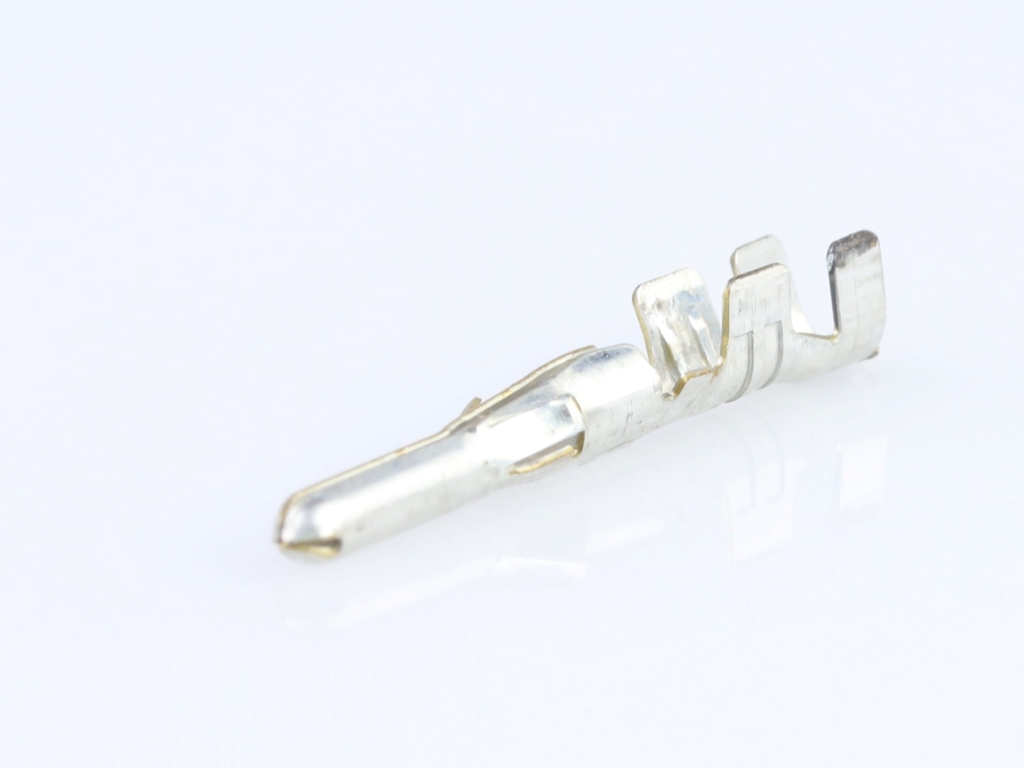

Standard .062"+ Male Terminal, 22-20 AWG, Tin (Sn) Plated, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 150180-1020 |
Where to Buy
Prices starting from US$0.0207
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.0375
|
30,390
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
30,390
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
3,401
in stock
|
Buy Now |
|
Sager
from US$0.0207
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0212
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0247
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.0339
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062"+ |
|---|---|
| Application | Power, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 400V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.124/g |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.20-1.80mm |
| Wire Size Awg | 20, 22 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, PIN, 20AWG, CRIMP | element14 |
| Econolatch Male Termnl 20-22Awg Rohs Compliant: Yes |Molex 150180-1020 | Newark Electronics |
| Pin & Socket Connectors ECONOLATCH 20-22AWG TERM SN | Sager |
| ECONOLATCH MALE TERMNL 20 G | Heilind Americas |
| ECONOLATCH 20-22AWG TERM SN | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1501801020?
Additional datasheets, footprints and schematics for 1501801020 are listed on our Part Details page. You can also find images and similar parts to 1501801020 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1501801020 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1501801020 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1501801020 fall under?
The 1501801020 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 1501801020 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1501801020 you can contact the distributor directly for product support, shipping queries etc.
Is the 1501801020 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
