1502000012 Ditto by Molex

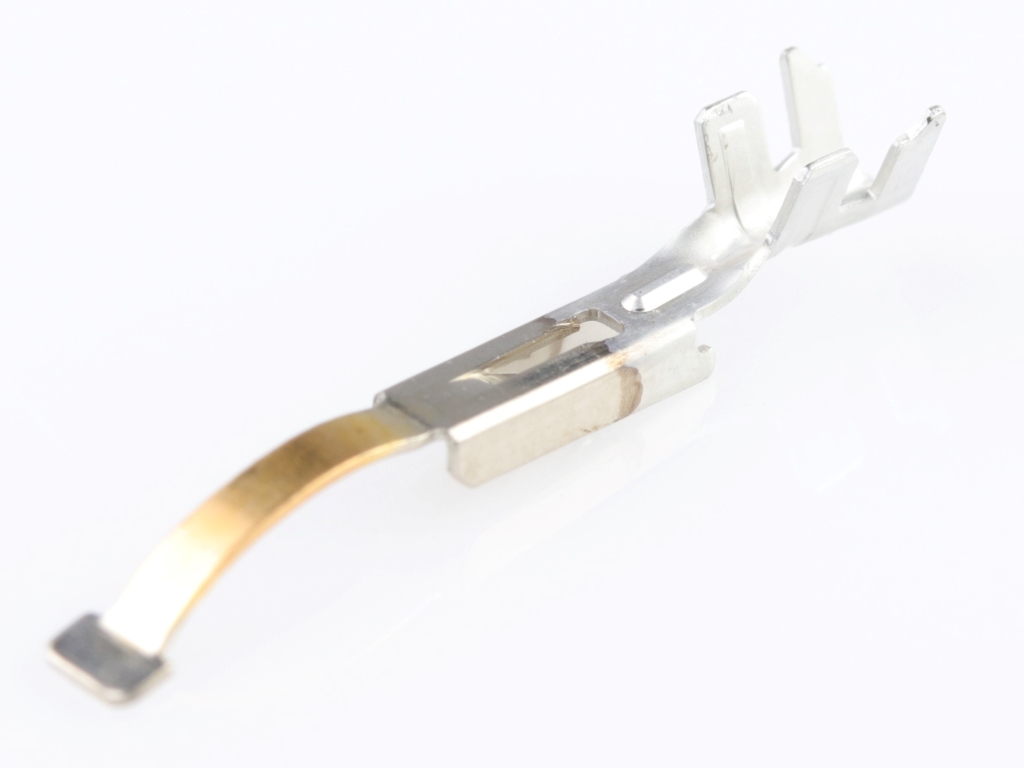

Ditto Hermaphroditic Crimp Terminal, Copper Nickel, Select Gold Plating, 26-24 AWG, for High-Temperature (-40° to +150°C) Housing
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 150200-0012 |
Specifications
| Product Name | Ditto |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 6.0A |
| Voltage Maximum | 350V AC/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 100 |
| Gender | Hermaphroditic |
| Material Metal | Copper Nickel |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.115/g |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.05-1.50mm |
| Wire Size Awg | 24, 26 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CRMP TERM 24-26AWG,CU-NI DITTO | Heilind Americas |
| CONTACT, HERMAPHRODITIC, 26-24AWG, CRIMP | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1502000012?
Additional datasheets, footprints and schematics for 1502000012 are listed on our Part Details page. You can also find images and similar parts to 1502000012 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1502000012 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1502000012 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1502000012 fall under?
The 1502000012 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 1502000012 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1502000012 you can contact the distributor directly for product support, shipping queries etc.
Is the 1502000012 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1502000012 have stock available?
Authorised distributors including Heilind Americas, element14 and Farnell have stock available or on a lead time for 1502000012.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1502000012 often in real-time on the comparison pages.
What if I can't find stock of 1502000012?
You can fill out our help required form which you can use to request a quote for 1502000012 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
