1502010014 Ditto by Molex

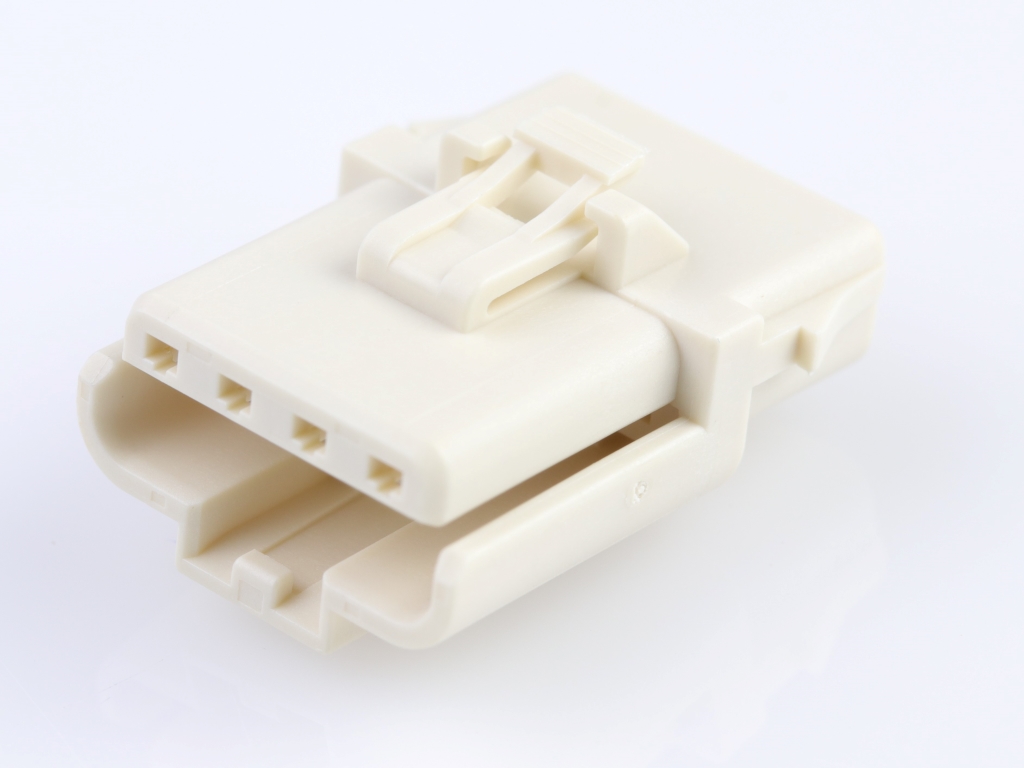

Ditto Hermaphroditic Crimp Housing, Positive Lock, 4 Circuit, High-Temperature, Natural
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 150201-0014 |
Specifications
| Product Name | Ditto |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | Natural (White) |
| Flammability | 94V-0 |
| Gender | Hermaphroditic |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.791/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +150°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stift-/Buchsengehäuse-Kabel Polzahl Gesamt 4 1502010014 1 St. Bulk | Conrad |
| CRMP HSG,HRMAPH,4P,LKG HI TMP, NAT, DITTO | Heilind Americas |
| Ditto Hermaphroditic Housing 4 Position Cable Mount Crimp Polyamide 6.6 White Bag | Avnet America |
