15060045 Mini-Fit BMI by Molex

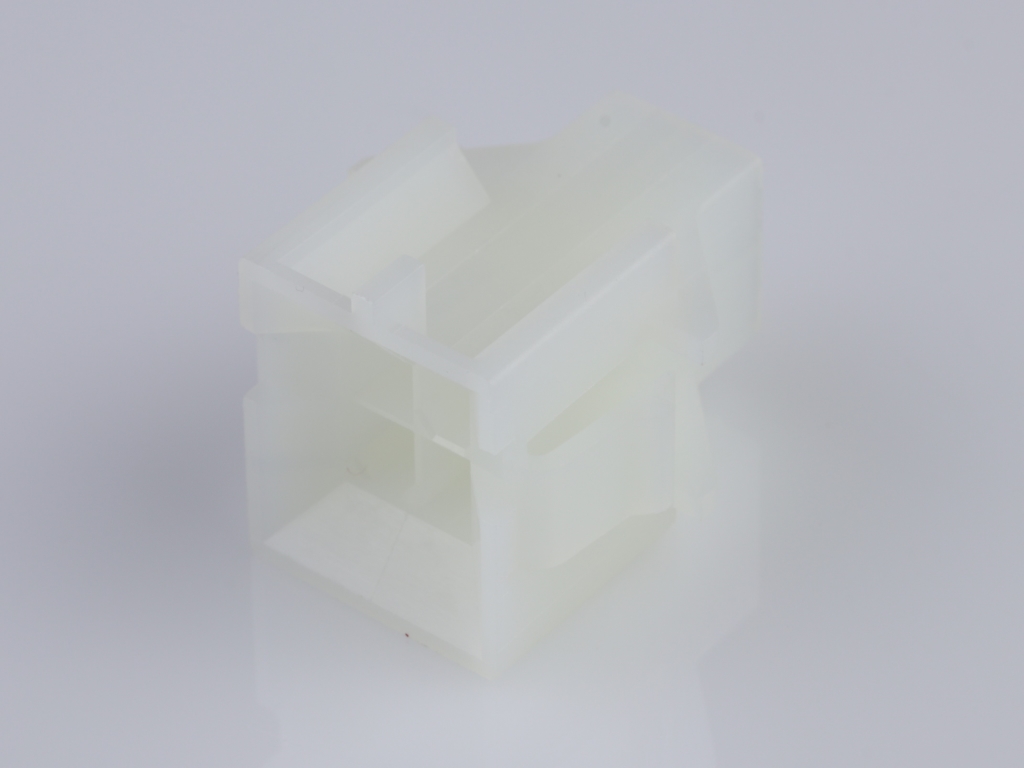

Mini-Fit BMI Plug Housing, 4.20mm Pitch, Dual Row, with Panel Mount Ears, Nylon 6/6 UL 94V-2, 4 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-06-0045,
0015060045, 42475-0411 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.48
|
5,253
in stock
|
Buy Now |
|
Farnell
from US$0.48
|
5,253
in stock
|
Buy Now |
|
Heilind Americas
from US$0.26
|
2,064
in stock
|
Buy Now |
|
Newark Electronics
from US$0.33
|
231
in stock
|
Buy Now |
|
Offical Electronic
-
|
330
in stock
|
Buy Now |
|
TME
from US$0.56
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.56
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.520/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, PLUG, 4POS | element14 |
| MINIFIT JR BMI PLG DLRW V-2 4 KT NAT | Heilind Americas |
| Header Connector, cable Mount, recept,4 Contacts, pin,0.165 Pitch, polarized Lck Rohs Compliant: Yes |Molex 15-06-0045 | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 4 Rastermaß: 4.20 mm 15060045 1 St. Bulk | Conrad |
| MINI-FIT BMI PLG 02X02P 94V-2 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 15060045?
Additional datasheets, footprints and schematics for 15060045 are listed on our Part Details page. You can also find images and similar parts to 15060045 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 15060045 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 15060045 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 15060045 fall under?
The 15060045 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 15060045 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 15060045 you can contact the distributor directly for product support, shipping queries etc.
Is the 15060045 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 15060045 have stock available?
Authorised distributors including element14, Farnell, Heilind Americas, Newark Electronics and Offical Electronic have stock available or on a lead time for 15060045.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 15060045 often in real-time on the comparison pages.
What if I can't find stock of 15060045?
You can fill out our help required form which you can use to request a quote for 15060045 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
