15060105 Mini-Fit BMI by Molex

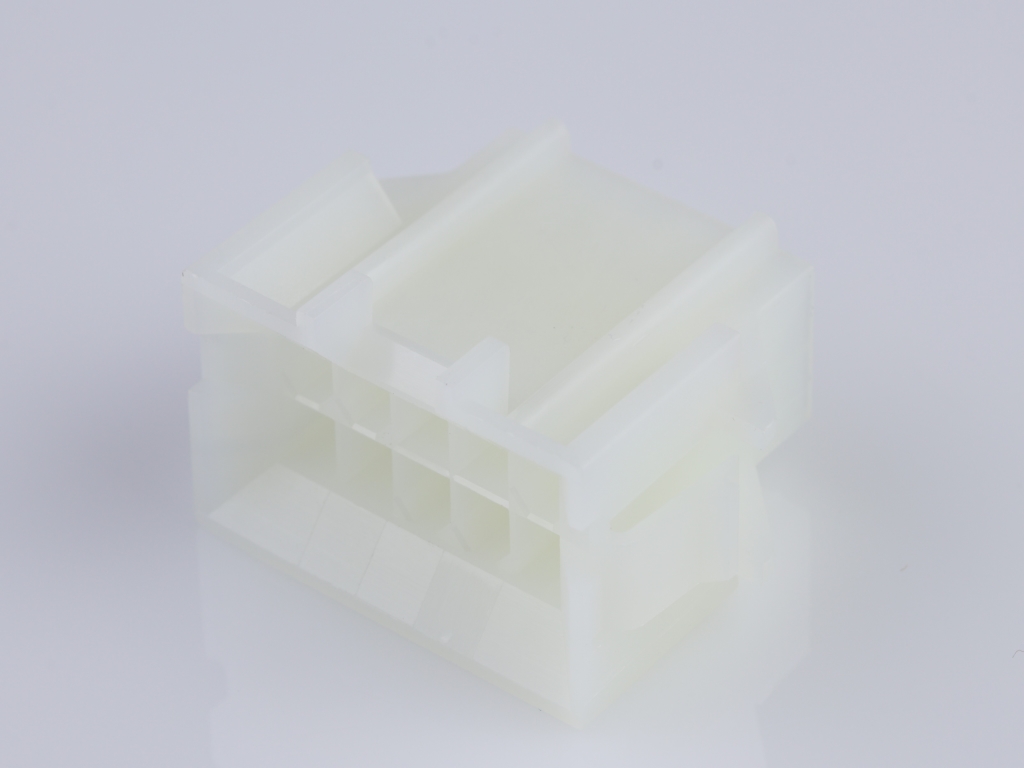

Mini-Fit BMI Plug Housing, 4.20mm Pitch, Dual Row, with Panel Mount Ears, Nylon 6/6 UL 94V-2, 10 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-06-0105,
0015060105, 42475-1011 |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.48
|
3,750
in stock
|
Buy Now |
|
Heilind Americas
from US$0.33
|
3,357
in stock
|
Buy Now |
|
Newark Electronics
from US$0.48
|
13
in stock
|
Buy Now |
|
element14
from US$0.54
|
13
in stock
|
Buy Now |
|
Farnell
from US$0.50
|
13
in stock
|
Buy Now |
|
TME
from US$0.57
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.58
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
EME
from US$0.54
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 4.400/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT BMI PLUG 94V-2 10CKT | TTI Europe |
| MINIFIT JR BMI PLG DLRW V-2 1 CKT NAT | Heilind Americas |
| Connector Housing, Plug, 10Pos | Newark Electronics |
| CONNECTOR HOUSING, PLUG, 10POS | element14 |
| Connector: wire-wire | TME |
| Molex Stiftgehäuse-Kabel 15060105 1 St. | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 15060105?
Additional datasheets, footprints and schematics for 15060105 are listed on our Part Details page. You can also find images and similar parts to 15060105 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 15060105 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 15060105 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 15060105 fall under?
The 15060105 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 15060105 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 15060105 you can contact the distributor directly for product support, shipping queries etc.
Is the 15060105 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 15060105 have stock available?
Authorised distributors including TTI Europe, Heilind Americas, Newark Electronics, element14 and Farnell have stock available or on a lead time for 15060105.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 15060105 often in real-time on the comparison pages.
What if I can't find stock of 15060105?
You can fill out our help required form which you can use to request a quote for 15060105 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
