1510530004 EXTreme Guardian by Molex

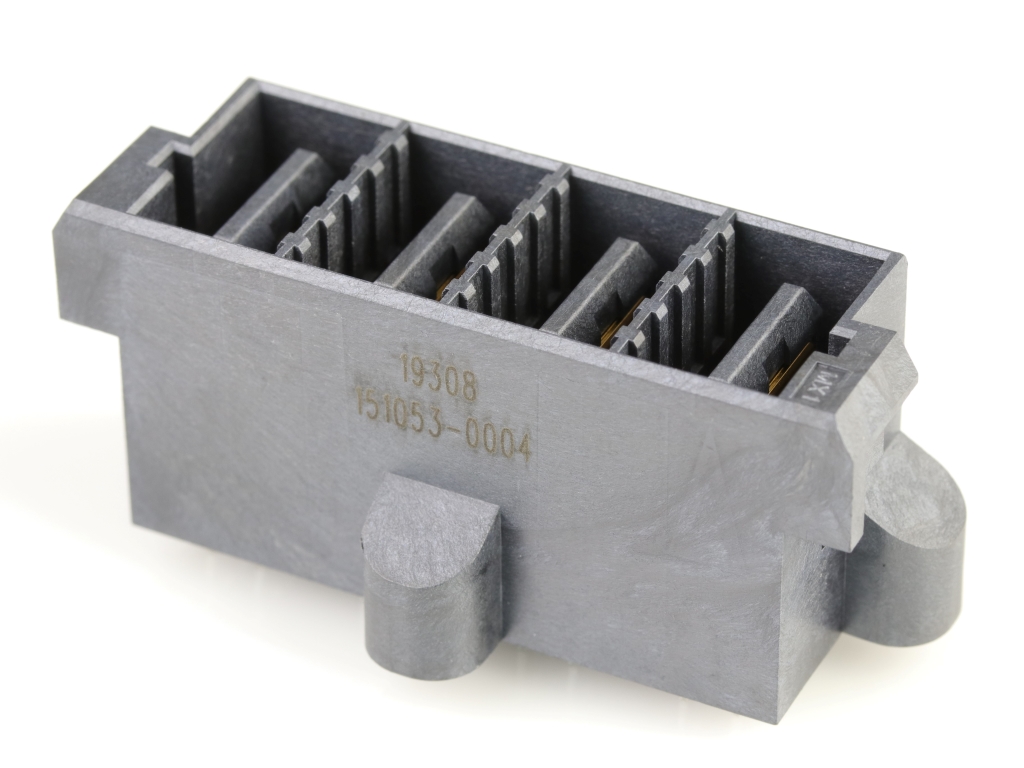

11.00mm Pitch EXTreme Guardian Power Vertical Plug PCB Header, 2.30mm PCB Thickness, Gold (Au) Plating, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 151053-0004 |
Where to Buy
Prices starting from US$12.23
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$23.81
|
428
in stock
|
Buy Now |
|
RS
from US$26.66
|
0
in stock
|
Buy Now |
|
TME
from US$13.90
|
0
in stock
|
Buy Now |
|
element14
from US$14.44
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$15.48
|
0
in stock
|
Buy Now |
|
Sager
from US$19.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$19.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$12.23
|
0
in stock
|
Buy Now |
|
Farnell
from US$14.40
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$25.12
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme Guardian |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 80.0A |
| Voltage Maximum | 600V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 23.088/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Thickness Recommended | 2.30mm |
| Pc Tail Length | 2.83mm |
| Pitch Mating Interface | 11.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Power To The Board Guardian Ii Plug Vt S/Blade Rohs Compliant: Yes |Molex 151053-0004 | Newark Electronics |
| Molex 151053-0004 Power Connector | RS |
| Connector: wire-board | TME |
| GUARDIAN II PLUG VT S/BLADE 0.76AU 4CKT | element14 |
| 11.00MM EXTREME GUARDIAN PLUG | TTI Europe |
| Power to the Board EXTREME GUARDIAN PLG 04P | Sager |
| GUARDIAN II PLUG VT S/BLADE 0 76AU 4CKT | Heilind Americas |
| EXTREME GUARDIAN PLG 04P | TTI Asia |
