1512072211 CP-6.5 by Molex

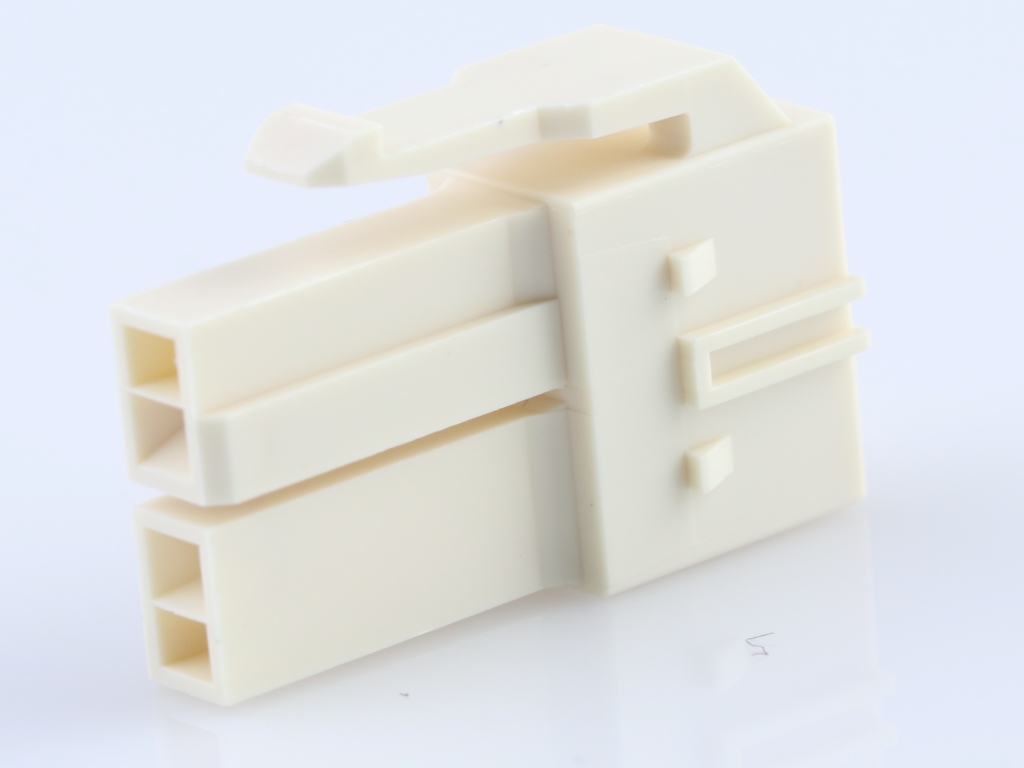

CP-6.5 Receptacle Housing, Glow-Wire Capable, 6.50mm Pitch, Dual Row, 2 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 151207-2211 |
Specifications
| Product Name | CP-6.5 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 2 |
| Color Resin | Natural (White) |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.007/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 6.50mm |
| Pitch Termination Interface | 6.50mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +105°C |
