151320503 Pico-Lock by Molex

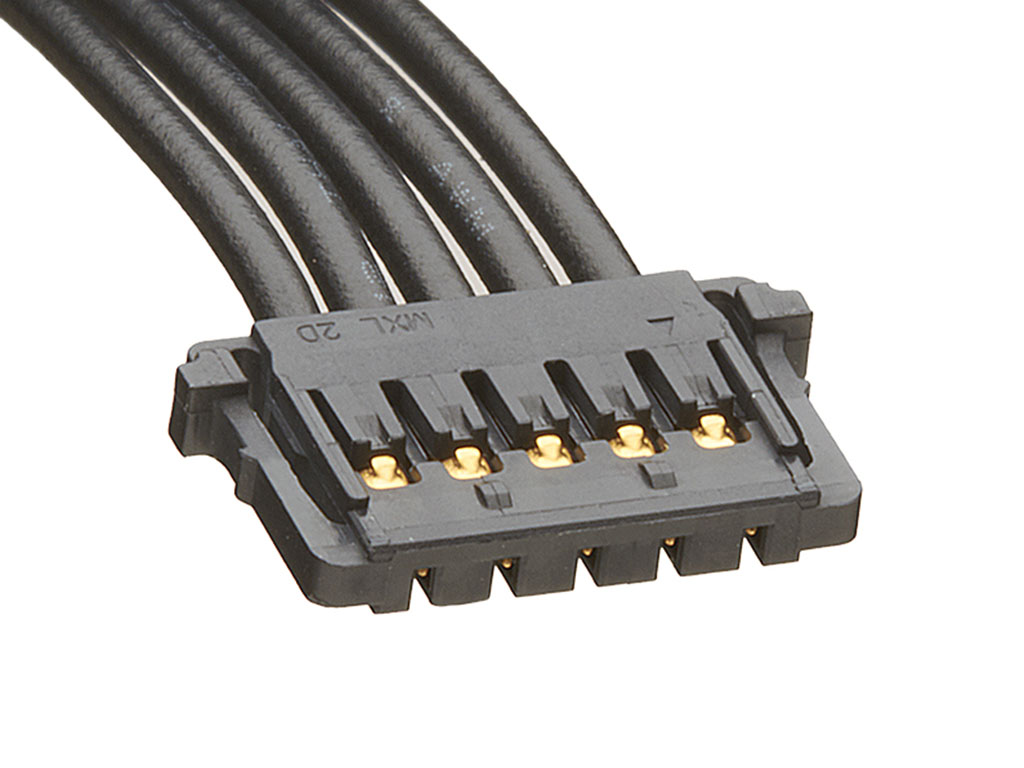

Pico-Lock-to-Pico-Lock Off-the-Shelf (OTS) Cable Assembly, 1.50mm Pitch, Single Row, 300.00mm Length, 5 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15132-0503,
0151320503 |
Where to Buy
Prices starting from US$2.60
Specifications
| Product Name | Pico-Lock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 150V |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.220/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.50mm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE-ASSY PICOLOCK 5 CIRCUIT 300MM | Heilind Americas |
| Cable-Assy Picolock 5 Circuit 300Mm |Molex 15132-0503 | Newark Electronics |
| CABLE ASSY, 5POS, RCPT-RCPT, 300MM | element14 |
| Molex Konfektionierte Litze 151320503 1 St. | Conrad |
