151320806 Pico-Lock by Molex

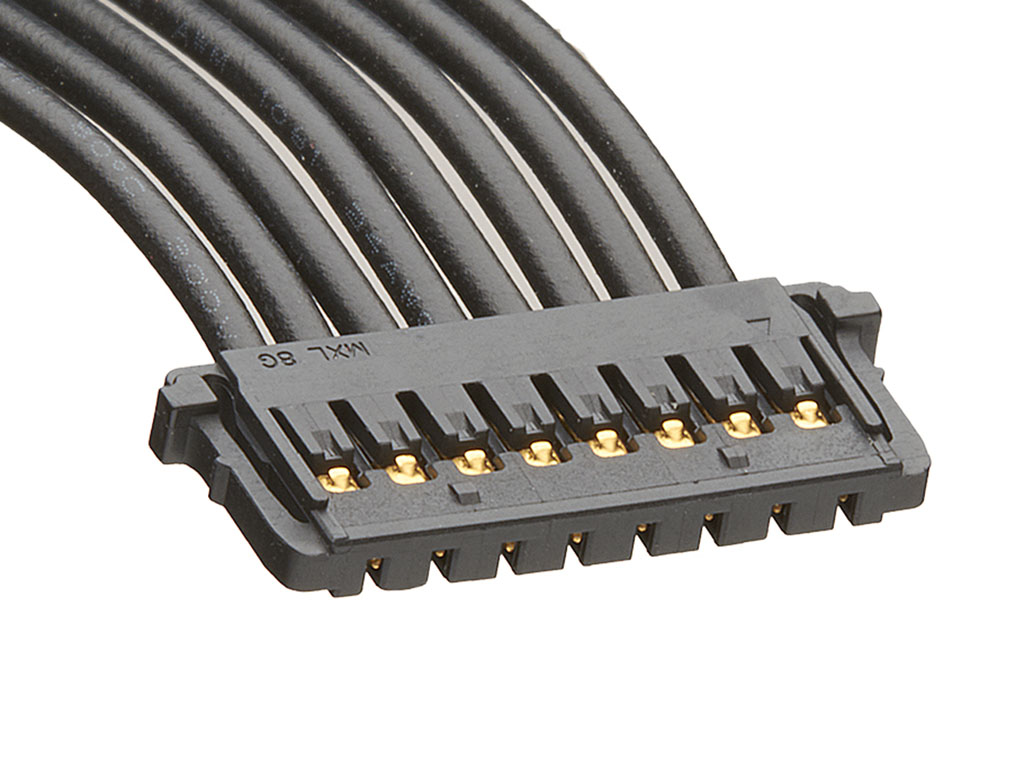

Pico-Lock-to-Pico-Lock Off-the-Shelf (OTS) Cable Assembly, 1.50mm Pitch, Single Row, 600.00mm Length, 8 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15132-0806,
0151320806 |
Where to Buy
Prices starting from US$4.52
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$7.04
|
86
in stock
|
Buy Now |
|
Conrad
from US$7.01
|
86
in stock
|
Buy Now |
|
Newark Electronics
from US$6.35
|
16
in stock
|
Buy Now |
|
element14
from US$6.03
|
16
in stock
|
Buy Now |
|
Farnell
from US$6.10
|
16
in stock
|
Buy Now |
|
RS
from US$8.31
|
0
in stock
|
Buy Now |
|
Sager
from US$4.60
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.52
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.88
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-Lock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 150V |
Physical |
|
|---|---|
| Cable Length | 600.00mm |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 16.003/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.50mm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ribbon cable with connectors | TME |
| Molex Stiftgehäuse-Kabel 15132-0806 1 St. | Conrad |
| Cable Assy, 8Pos, Rcpt-Rcpt, 600Mm Rohs Compliant: Yes |Molex 15132-0806 | Newark Electronics |
| CABLE ASSY, 8POS, RCPT-RCPT, 600MM | element14 |
| Molex 15132-0806 Wire to Board Cable | RS |
| Rectangular Cable Assemblies PICO-LOCK OTS 08P CABLE ASSY | Sager |
| CABLE-ASSY PICOLOCK 8 CIRCUIT 600MM | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 151320806?
Additional datasheets, footprints and schematics for 151320806 are listed on our Part Details page. You can also find images and similar parts to 151320806 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 151320806 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 151320806 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 151320806 fall under?
The 151320806 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 151320806 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 151320806 you can contact the distributor directly for product support, shipping queries etc.
Is the 151320806 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 151320806 have stock available?
Authorised distributors including TME, Conrad, Newark Electronics, element14 and Farnell have stock available or on a lead time for 151320806.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 151320806 often in real-time on the comparison pages.
What if I can't find stock of 151320806?
You can fill out our help required form which you can use to request a quote for 151320806 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
