151330200 Pico-Clasp by Molex

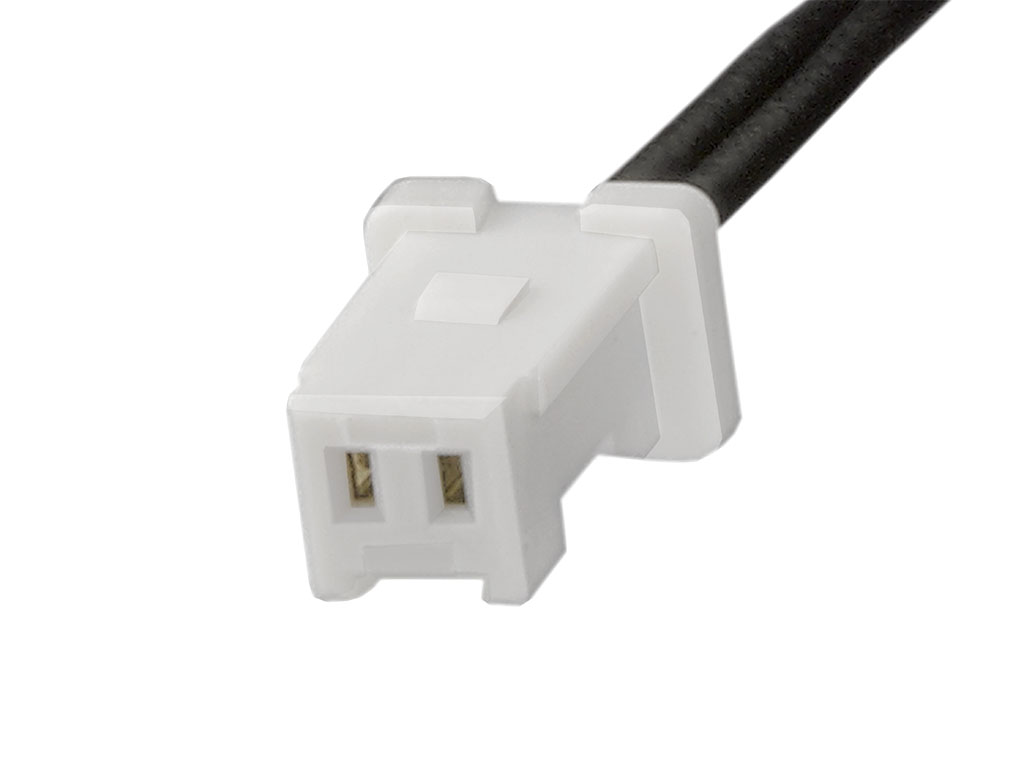

Pico-Clasp-to-Pico-Clasp Off-the-Shelf (OTS) Cable Assembly, Single Row, 50.00mm Length, 2 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15133-0200,
0151330200 |
Where to Buy
Prices starting from US$1.70
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.74
|
1,762
in stock
|
Buy Now |
|
element14
from US$2.47
|
1,762
in stock
|
Buy Now |
|
Farnell
from US$2.06
|
1,762
in stock
|
Buy Now |
|
TME
from US$2.44
|
880
in stock
|
Buy Now |
|
Rapid Electronics
from US$3.32
|
122
in stock
|
Buy Now |
|
Conrad
from US$2.41
|
122
in stock
|
Buy Now |
|
RS
from US$3.55
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.70
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-Clasp |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 50.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | White |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.237/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 2P Rcpt-Rcpt, 50Mm Rohs Compliant: Yes |Molex 15133-0200 | Newark Electronics |
| CABLE ASSY, 2P RCPT-RCPT, 50MM | element14 |
| Connector: wire-board | TME |
| Molex 151330200 Pico-clasp Socket Housing Cable 2-pin 1mm Spacing | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 1 mm 151330200 1 St. Bag | Conrad |
| Molex 15133-0200 Cable Assembly | RS |
| PICO-CLASP 2 CIRCUIT 50MM CABLE ASSEMBLY | Heilind Americas |
