151330306 Pico-Clasp by Molex

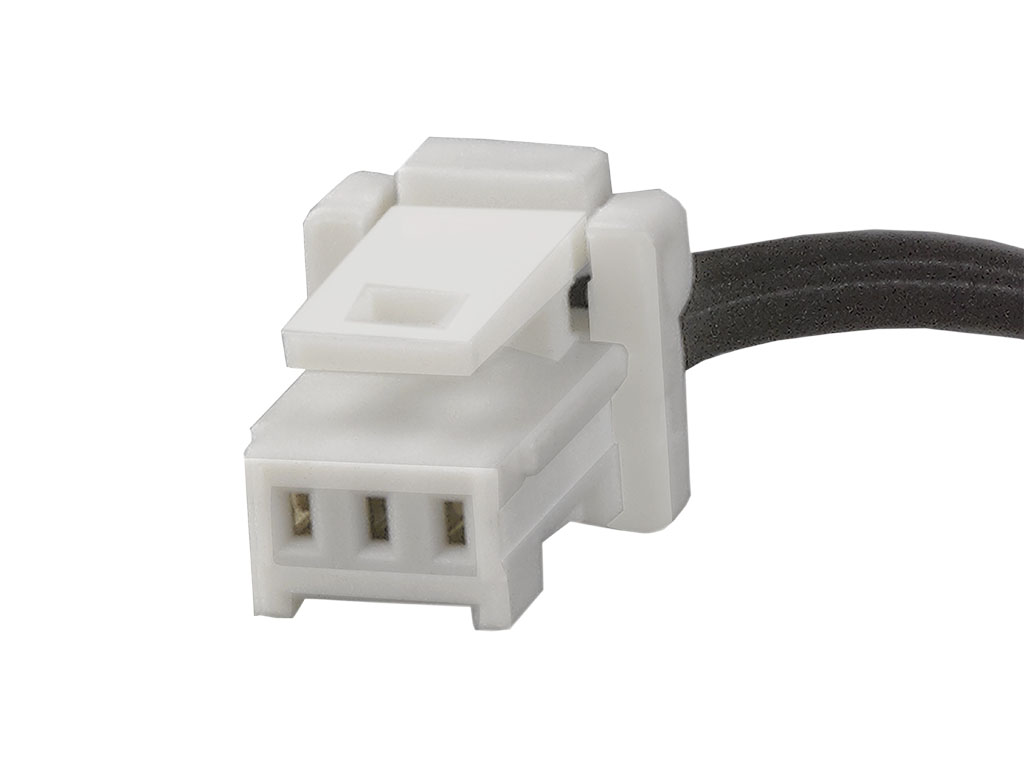

Pico-Clasp-to-Pico-Clasp Off-the-Shelf (OTS) Cable Assembly, Single Row, 600.00mm Length, 3 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15133-0306,
0151330306 |
Specifications
| Product Name | Pico-Clasp |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 600.00mm |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | White |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 2.033/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 15133-0306 Wire to Board Cable | RS |
| Cable Assy, 3Pos, Rcpt-Rcpt, 23.6" | Newark Electronics |
| PICO-CLASP 3 CIRCUIT 600MM CABLE ASSEMBLY | Heilind Americas |
| CABLE ASSY, 3POS, RCPT-RCPT, 600MM | Farnell |
