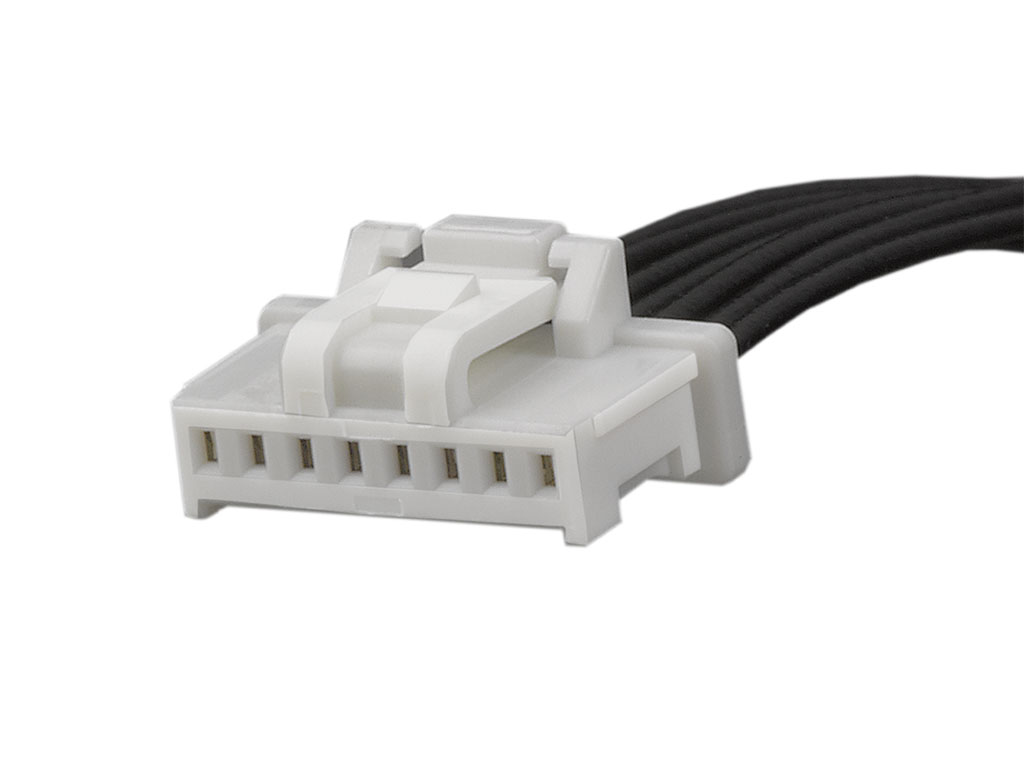

151330806 Pico-Clasp by Molex
Pico-Clasp-to-Pico-Clasp Off-the-Shelf (OTS) Cable Assembly, Single Row, 600.00mm Length, 8 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15133-0806,
0151330806 |
Where to Buy
Prices starting from US$4.62
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$7.07
|
854
in stock
|
Buy Now |
|
Conrad
from US$7.96
|
854
in stock
|
Buy Now |
|
Farnell
from US$8.52
|
769
in stock
|
Buy Now |
|
Newark Electronics
from US$9.09
|
74
in stock
|
Buy Now |
|
element14
from US$6.84
|
74
in stock
|
Buy Now |
|
Heilind Americas
from US$4.62
|
60
in stock
|
Buy Now |
|
RS
from US$8.85
|
35
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.39
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-Clasp |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 600.00mm |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | White |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 5.273/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.00mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 8 151330806 1 St. Bulk | Conrad |
| CABLE ASSY, 8P, RCPT-RCPT, 600MM | Farnell |
| Cable Assy, 8Pos, Rcpt-Rcpt, 600Mm | Newark Electronics |
| CABLE ASSY, 8POS, RCPT-RCPT, 600MM | element14 |
| PICO-CLASP 8 CIRCUIT 600MM CABLE ASSEMBLY | Heilind Americas |
| Molex 15133-0806 Wire to Board Cable | RS |
