151340203 PicoBlade by Molex

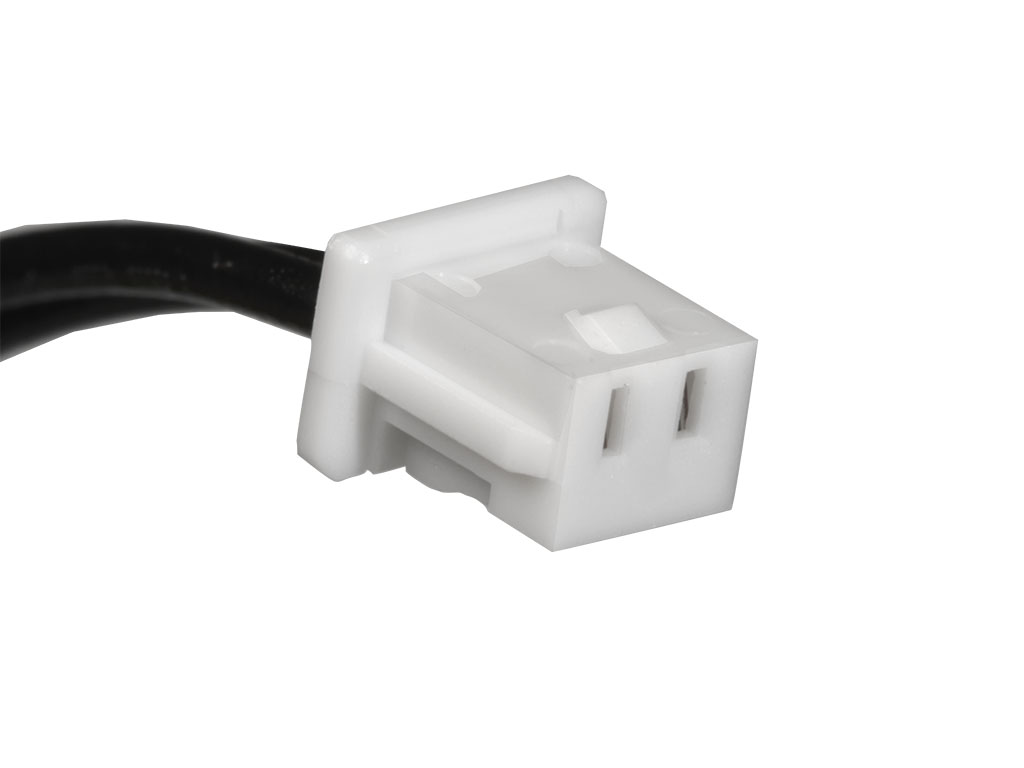

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 300.00mm Length, 2 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-0203,
0151340203 |
Where to Buy
Prices starting from US$1.23
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$2.54
|
5,339
in stock
|
Buy Now |
|
element14
from US$2.47
|
4,163
in stock
|
Buy Now |
|
TME
from US$2.73
|
3,532
in stock
|
Buy Now |
|
Newark Electronics
from US$1.23
|
2,342
in stock
|
Buy Now |
|
RS
from US$2.48
|
665
in stock
|
Buy Now |
|
Avnet America
from US$1.50
|
0
in stock
|
Buy Now |
|
Compona
from US$2.36
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.32
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.51
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.900/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 2P, RCPT-RCPT, 300MM | Farnell |
| CABLE ASSY, 2POS, RCPT-RCPT, 300MM | element14 |
| 15134-0203 | TME |
| Cable Assy, 2Pos, Rcpt-Rcpt, 11.8" | Newark Electronics |
| Molex 15134-0203 Wire to Board Cable | RS |
| Cable Assembly UL 1061 0.3m 28AWG 2POS Wire to Board to 2POS Wire to Board F-F Bag | Avnet America |
| MOLEX 151340203 Socket Square 2p with Cable 300mm | Compona |
| PICOBLADE FEMALE-TO-PICOBLADE | TTI Europe |
| PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly Single Row 300.00mm Length 2 Circuits Natural | Heilind Americas |
| PICOBLADE 1X02P 300MM OTS ASSY | TTI Asia |
