151340301 PicoBlade by Molex

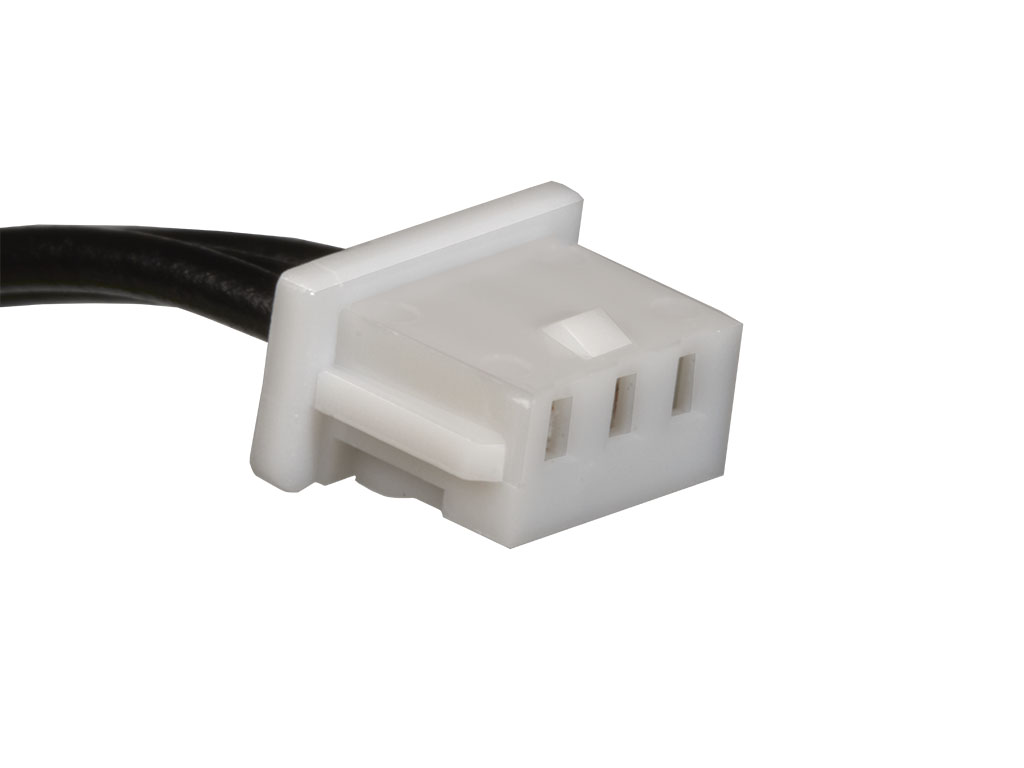

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 100.00mm Length, 3 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-0301,
0151340301 |
Where to Buy
Prices starting from US$1.63
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.26
|
7,800
in stock
|
Buy Now |
|
RS
from US$3.70
|
1,663
in stock
|
Buy Now |
|
Newark Electronics
from US$3.54
|
639
in stock
|
Buy Now |
|
element14
from US$2.69
|
639
in stock
|
Buy Now |
|
Farnell
from US$2.73
|
639
in stock
|
Buy Now |
|
Compona
from US$2.61
|
0
in stock
|
Buy Now |
|
Sager
from US$1.66
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.63
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.01
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Signal, Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.600/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PICOBLADE 3 CIRCUIT 100MM | TTI Europe |
| Molex 15134-0301 Wire to Board Cable | RS |
| Cable Assy, 3Pos, Rcpt-Rcpt, 100Mm Connector To Connectorpicoblade Receptacle To Picoblade Receptacle No. Of Positions3Ways Cable Length - Metric100Mm Cable Length - Imperial3.9 Product Rangepicoblade Ots 15134 Series Rohs Compliant: Yes |Molex 15134-0301 | Newark Electronics |
| CABLE ASSY, 3POS, RCPT-RCPT, 100MM | element14 |
| MOLEX 151340301 Socket Square 3p with Cable 100mm | Compona |
| Rectangular Cable Assemblies PICOBLADE 1X03P 100MM OTS ASSY | Sager |
| PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly Single Row 100.00mm Length 3 Circuits Natural | Heilind Americas |
| PICOBLADE 1X03P 100MM OTS ASSY | TTI Asia |
