151340402 PicoBlade by Molex

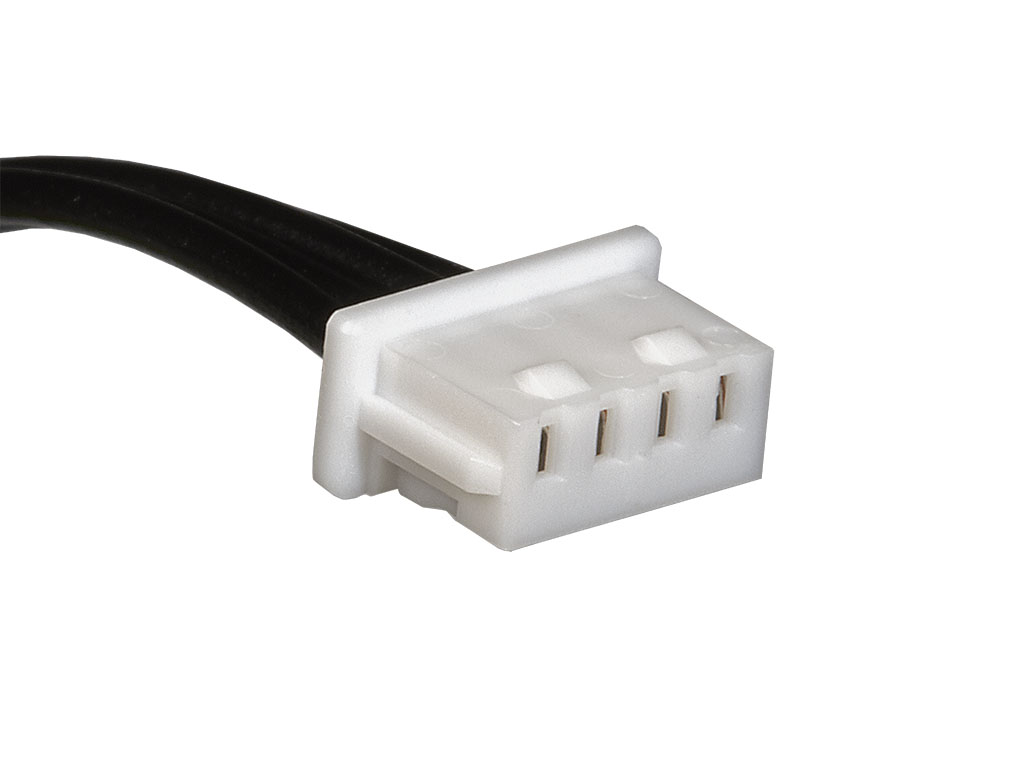

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 4 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-0402,
0151340402 |
Where to Buy
Prices starting from US$1.91
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.97
|
3,485
in stock
|
Buy Now |
|
Newark Electronics
from US$4.81
|
2,404
in stock
|
Buy Now |
|
element14
from US$3.56
|
2,404
in stock
|
Buy Now |
|
Farnell
from US$3.56
|
2,404
in stock
|
Buy Now |
|
RS
from US$6.07
|
1,093
in stock
|
Buy Now |
|
TTI Europe
from US$3.02
|
240
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.13
|
20
in stock
|
Buy Now |
|
Avnet America
from US$2.34
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$5.64
|
0
in stock
|
Buy Now |
|
TME
from US$4.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.89
|
0
in stock
|
Buy Now |
|
Compona
from US$3.48
|
0
in stock
|
Buy Now |
|
Conrad
from US$4.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.91
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.200/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly Single Row 150.00mm Length 4 Circuits Natural | Heilind Americas |
| Cable Assy, 4Pos, Rcpt-Rcpt, 150Mm | Newark Electronics |
| CABLE ASSY, 4POS, RCPT-RCPT, 150MM | element14 |
| Molex 15134-0402 Wire to Board Cable | RS |
| PICOBLADE ASSEMBLY 150MM 4CT | TTI Europe |
| PICOBLADE 1X04P 150MM OTS ASSY | TTI Americas |
| MLX151340402 | Avnet America |
| Molex 151340402 Socket Housing Cable 4-pin 1.25mm Natural 150mm | Rapid Electronics |
| Cable | TME |
| POWER CORD, DC, 4 CIRCUIT 150MM PICOBLADE | RS Americas |
| MOLEX 151340402 Socket Square 4p with Cable 150mm | Compona |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 4 Rastermaß: 1.25 mm 151340402 1 St. Bag | Conrad |
| PICOBLADE 1X04P 150MM | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 151340402?
Additional datasheets, footprints and schematics for 151340402 are listed on our Part Details page. You can also find images and similar parts to 151340402 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 151340402 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 151340402 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 151340402 fall under?
The 151340402 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 151340402 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 151340402 you can contact the distributor directly for product support, shipping queries etc.
Is the 151340402 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 151340402 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 151340402.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 151340402 often in real-time on the comparison pages.
What if I can't find stock of 151340402?
You can fill out our help required form which you can use to request a quote for 151340402 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
