151340505 PicoBlade by Molex

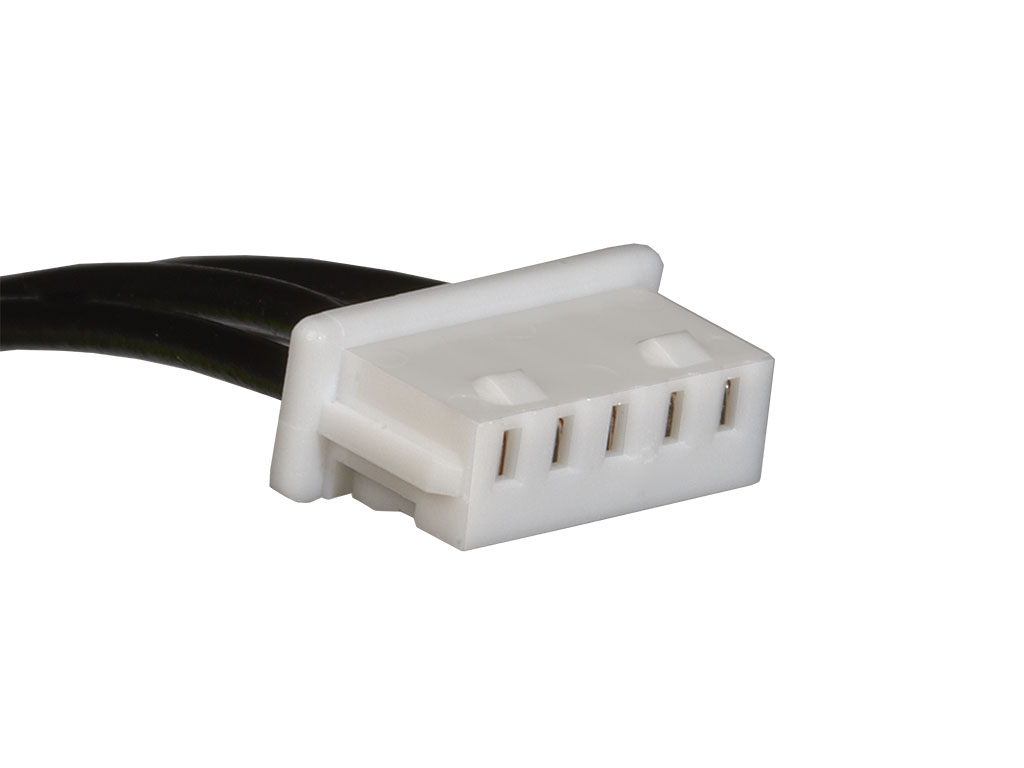

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 450.00mm Length, 5 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-0505,
0151340505 |
Where to Buy
Prices starting from US$2.88
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.36
|
1,986
in stock
|
Buy Now |
|
element14
from US$4.82
|
1,986
in stock
|
Buy Now |
|
Farnell
from US$3.80
|
1,986
in stock
|
Buy Now |
|
RS
from US$5.51
|
0
in stock
|
Buy Now |
|
Compona
from US$4.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.88
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.19
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 450.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 4.386/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 5P Rcpt-Rcpt, 450Mm Rohs Compliant: Yes |Molex 15134-0505 | Newark Electronics |
| CABLE ASSY, 5P RCPT-RCPT, 450MM | element14 |
| Molex 15134-0505 Wire to Board Cable | RS |
| MOLEX 15134-0505 Connection Cable F/F PicoBlade 5p 0.45m | Compona |
| PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly Single Row 450.00mm Length 5 Circuits Natural | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 151340505?
Additional datasheets, footprints and schematics for 151340505 are listed on our Part Details page. You can also find images and similar parts to 151340505 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 151340505 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 151340505 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 151340505 fall under?
The 151340505 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 151340505 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 151340505 you can contact the distributor directly for product support, shipping queries etc.
Is the 151340505 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 151340505 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS and Compona have stock available or on a lead time for 151340505.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 151340505 often in real-time on the comparison pages.
What if I can't find stock of 151340505?
You can fill out our help required form which you can use to request a quote for 151340505 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
