151340802 PicoBlade by Molex

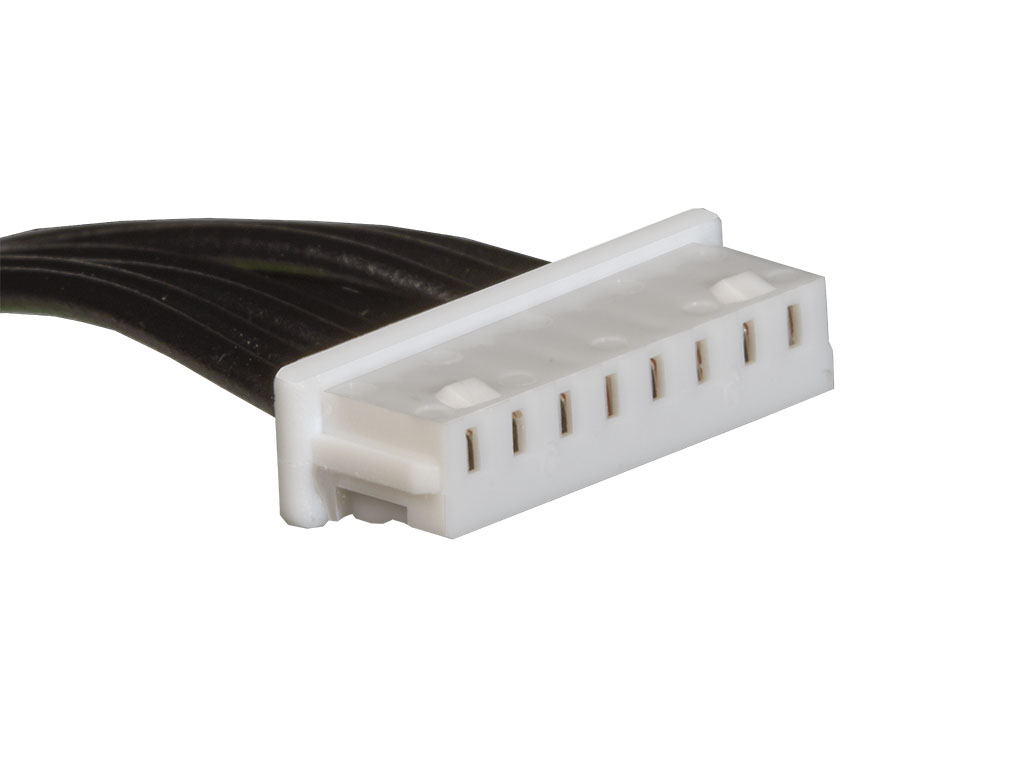

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 8 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-0802,
0151340802 |
Where to Buy
Prices starting from US$3.23
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$6.60
|
4,190
in stock
|
Buy Now |
|
Newark Electronics
from US$8.10
|
982
in stock
|
Buy Now |
|
element14
from US$6.48
|
982
in stock
|
Buy Now |
|
RS
from US$12.32
|
325
in stock
|
Buy Now |
|
Avnet America
from US$4.08
|
225
in stock
|
Buy Now |
|
Rapid Electronics
from US$11.60
|
0
in stock
|
Buy Now |
|
TME
from US$7.52
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.98
|
0
in stock
|
Buy Now |
|
Compona
from US$5.98
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.23
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$5.93
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.46
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.200/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 8P, RCPT-RCPT, 150MM | Farnell |
| Cable Assy, 8Pos, Rcpt-Rcpt, 150Mm | Newark Electronics |
| CABLE ASSY, 8POS, RCPT-RCPT, 150MM | element14 |
| Molex 15134-0802 Wire to Board Cable | RS |
| Molex 151340802 Picoblade Cable 8 Pins 1.25mm Pitch 150mm Length | Rapid Electronics |
| Cable | TME |
| POWER CORD, DC, 8 CIRCUIT 150MM PICOBLADE | RS Americas |
| MOLEX 151340802 Socket Square 8p with Cable 150mm | Compona |
| PICOBLADE 1X08P 150MM OTS ASSY | TTI Americas |
| PICOBLADE 8 CIRCUIT 150MM | TTI Europe |
| PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly Single Row 150.00mm Length 8 Circuits Natural | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 151340802?
Additional datasheets, footprints and schematics for 151340802 are listed on our Part Details page. You can also find images and similar parts to 151340802 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 151340802 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 151340802 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 151340802 fall under?
The 151340802 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 151340802 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 151340802 you can contact the distributor directly for product support, shipping queries etc.
Is the 151340802 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 151340802 have stock available?
Authorised distributors including Farnell, Newark Electronics, element14, RS and Avnet America have stock available or on a lead time for 151340802.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 151340802 often in real-time on the comparison pages.
What if I can't find stock of 151340802?
You can fill out our help required form which you can use to request a quote for 151340802 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
