151341005 PicoBlade by Molex

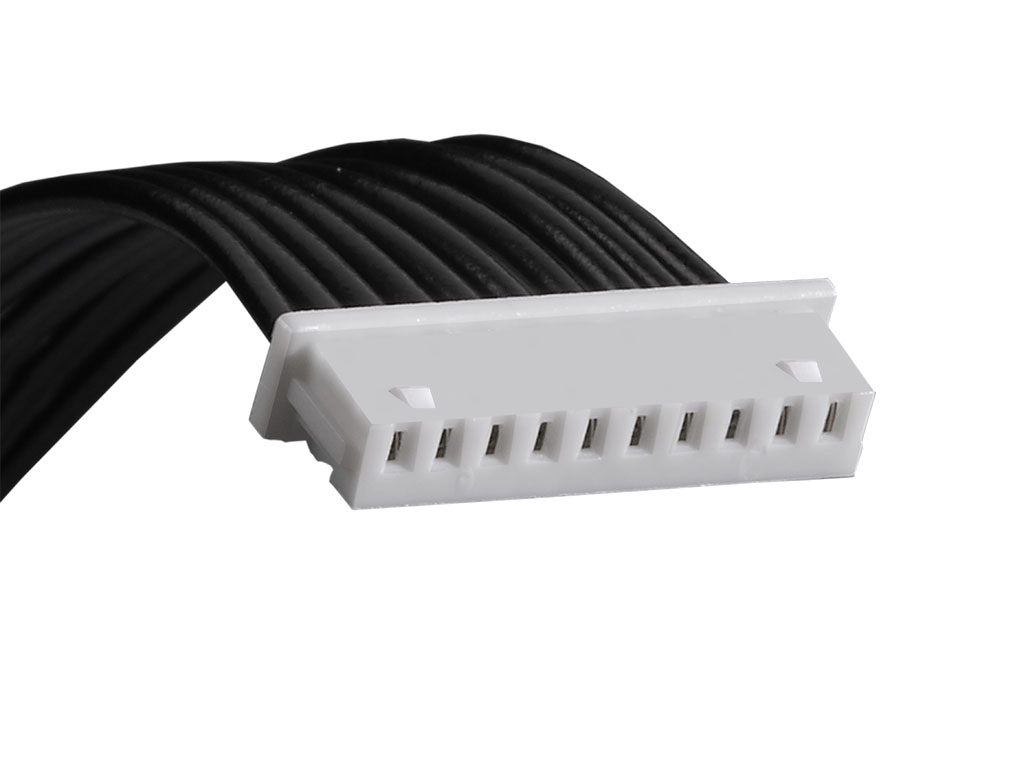

PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 450.00mm Length, 10 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15134-1005,
0151341005 |
Where to Buy
Prices starting from US$4.32
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$6.90
|
882
in stock
|
Buy Now |
|
element14
from US$4.99
|
882
in stock
|
Buy Now |
|
Farnell
from US$6.38
|
882
in stock
|
Buy Now |
|
RS
from US$6.01
|
0
in stock
|
Buy Now |
|
TME
from US$5.62
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$5.06
|
0
in stock
|
Buy Now |
|
Conrad
from US$7.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 450.00mm |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 7.720/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 10P Rcpt-Rcpt, 450Mm Rohs Compliant: Yes |Molex 15134-1005 | Newark Electronics |
| CABLE ASSY, 10P RCPT-RCPT, 450MM | element14 |
| Molex 15134-1005 Wire to Board Cable | RS |
| Cable | TME |
| PICOBLADE 10 CIRCUIT 450MM | RS Americas |
| Molex Buchsengehäuse-Kabel 151341005 1 St. | Conrad |
