151350602 CLIK-Mate by Molex

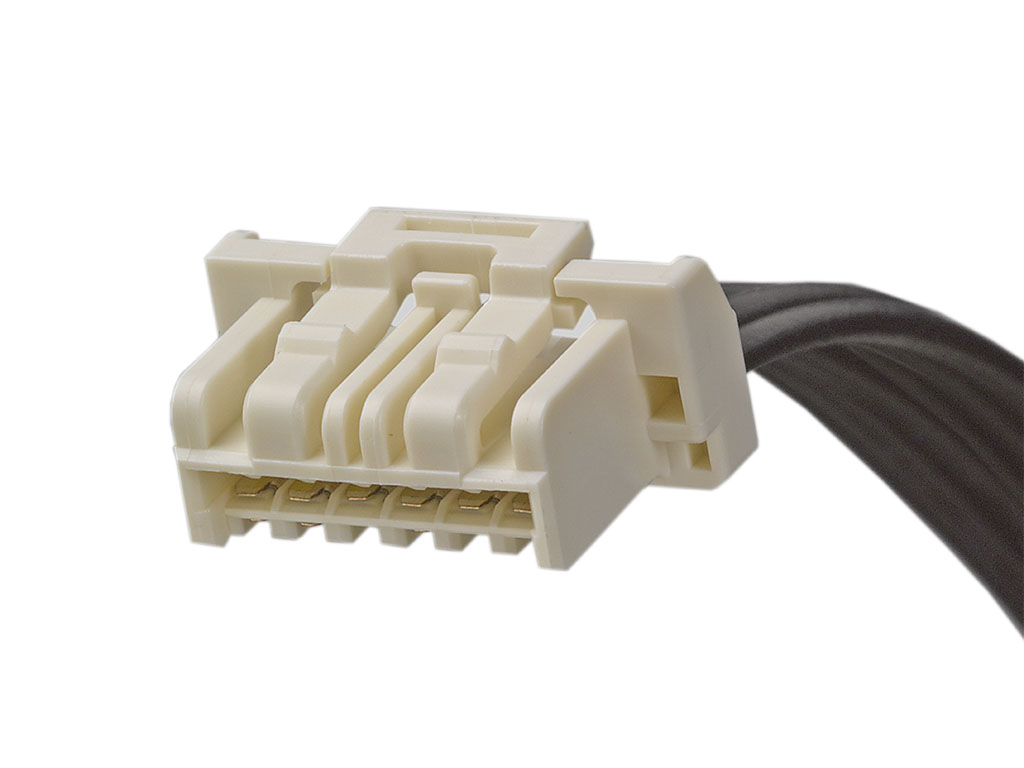

CLIK-Mate-to-CLIK-Mate Off-the-Shelf (OTS) Cable Assembly, 1.50mm Pitch, Single Row, 150.00mm Length, 6 Circuits, Beige
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15135-0602,
0151350602 |
Where to Buy
Prices starting from US$2.51
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Beige |
| Gender | Male-Male |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 3.827/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.50mm |
| Plating Min Mating | 0.406µm |
| Plating Min Termination | 0.406µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 24 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 6Pos, Plug-Plug, 150Mm | Newark Electronics |
| CABLE ASSY, 6POS, PLUG-PLUG, 150MM | element14 |
| CLICKMATE 6 CIRCUIT 150MM WIRE ASSY | Heilind Americas |
