151360602 MicroClasp by Molex

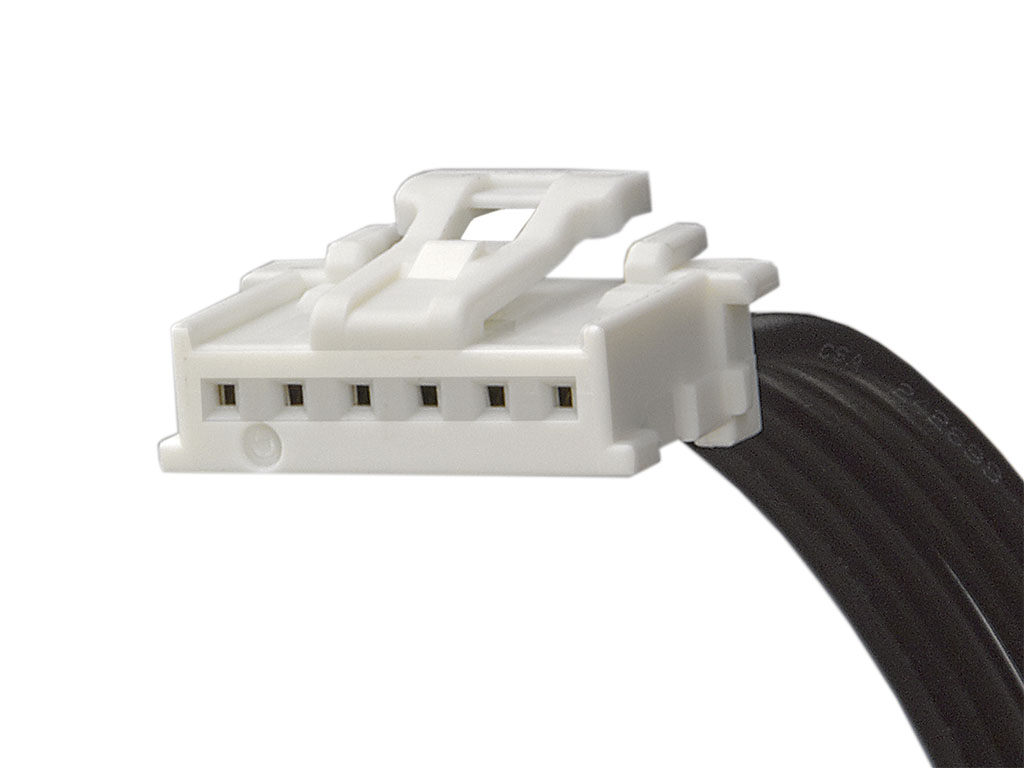

MicroClasp-to-MicroClasp Off-the-Shelf (OTS) Cable Assembly, Single Row, Tin (Sn) Plating, 150.00mm Length, 6 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15136-0602,
0151360602 |
Specifications
| Product Name | MicroClasp |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | White |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 5.251/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.00mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Microclasp 6Circuit 150Mm |Molex 15136-0602 | Newark Electronics |
| MICROCLASP 6 CIRCUIT 150MM CABLE ASSEMBLY | Heilind Europe |
| MLX151360602 | Avnet Abacus |
