151370803 Mini-Lock by Molex

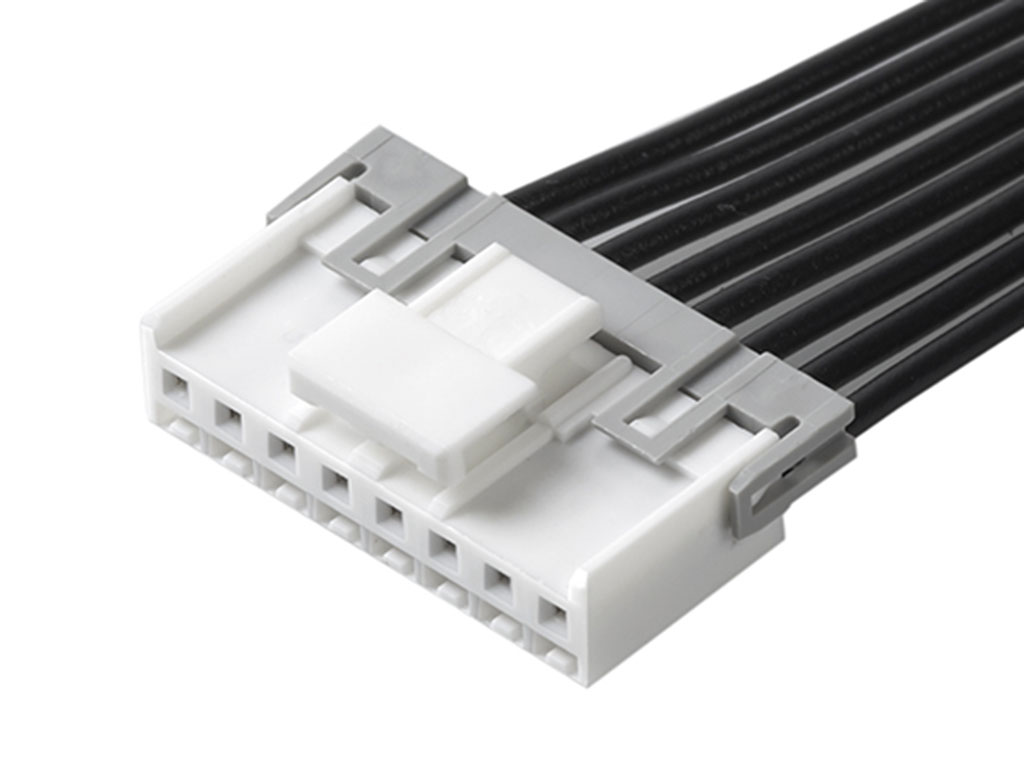

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 300.00mm Length, 8 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15137-0803,
0151370803 |
Where to Buy
Prices starting from US$1.63
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$5.29
|
458
in stock
|
Buy Now |
|
Farnell
from US$6.37
|
458
in stock
|
Buy Now |
|
RS
from US$5.26
|
452
in stock
|
Buy Now |
|
Newark Electronics
from US$1.63
|
2
in stock
|
Buy Now |
|
Conrad
from US$8.07
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.70
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Lock |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Gender | Female-Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Polyester |
| Net Weight | 19.627/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 0.889µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, MINI 8P RCPT-RCPT, 300MM | element14 |
| Molex 151370803 Wire to Board Cable | RS |
| Cable Assy, Mini 8P Rcpt-Rcpt, 11.8" | Newark Electronics |
| Molex Buchsengehäuse-Kabel 151370803 1 St. | Conrad |
| CAB ASY, 8 CKT, 300MM LGTH MINI-LOCK OTS | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 151370803?
Additional datasheets, footprints and schematics for 151370803 are listed on our Part Details page. You can also find images and similar parts to 151370803 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 151370803 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 151370803 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 151370803 fall under?
The 151370803 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 151370803 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 151370803 you can contact the distributor directly for product support, shipping queries etc.
Is the 151370803 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 151370803 have stock available?
Authorised distributors including element14, Farnell, RS, Newark Electronics and Conrad have stock available or on a lead time for 151370803.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 151370803 often in real-time on the comparison pages.
What if I can't find stock of 151370803?
You can fill out our help required form which you can use to request a quote for 151370803 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
