151371103 Mini-Lock by Molex

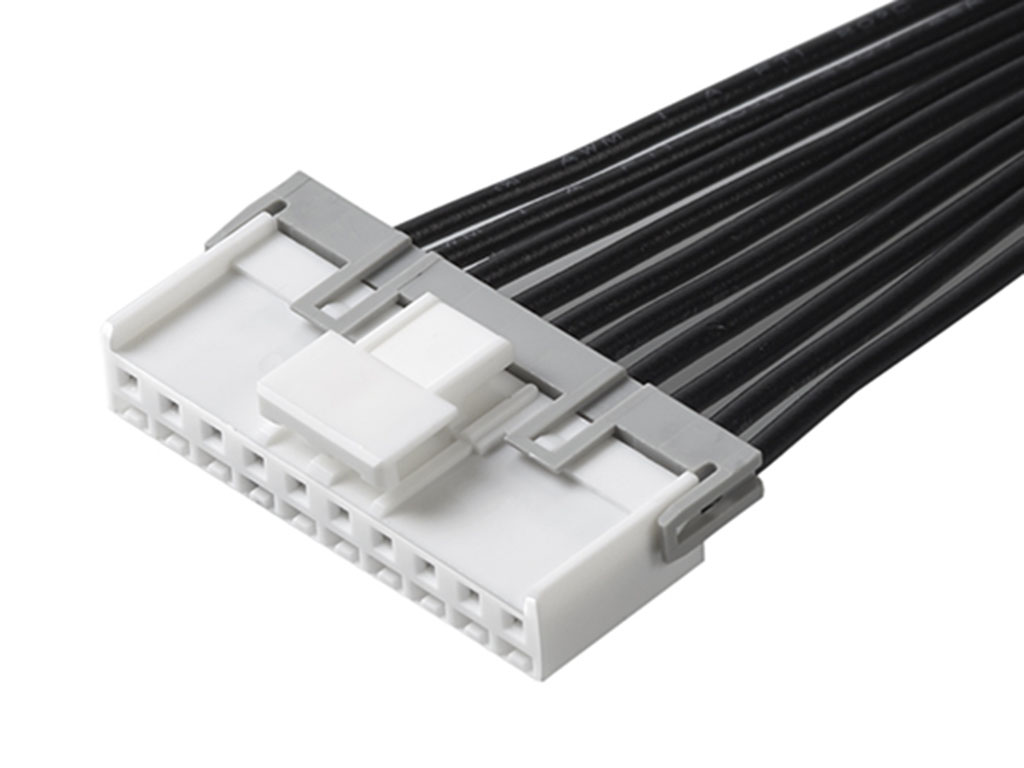

Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly, 2.50mm Pitch, Female-Female, Single Row, 300.00mm Length, 11 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15137-1103,
0151371103 |
Specifications
| Product Name | Mini-Lock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 11 |
| Circuits Maximum | 11 |
| Color Resin | Natural |
| Gender | Female-Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Polyester |
| Net Weight | 27.160/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 0.889µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, Mini 11P Rcpt-Rcpt, 300Mm | Newark Electronics |
| CABLE ASSY, MINI 11P RCPT-RCPT, 300MM | element14 |
| CAB ASY, 11 CKT, 300MM LGTH MINI-LOCK OTS | Heilind Americas |
