15246100 Mini-Fit BMI by Molex

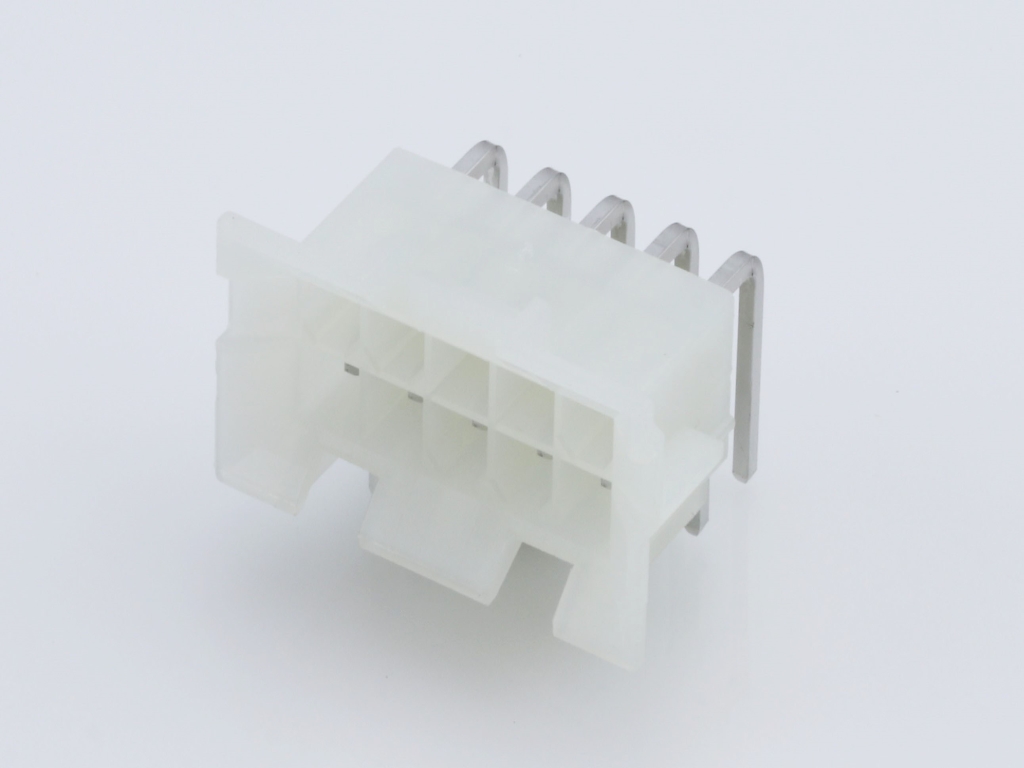

Mini-Fit BMI Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, with Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-24-6100,
0015246100, A-42404-10A1 |
Where to Buy
Prices starting from US$0.86
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.86
|
2,464
in stock
|
Buy Now |
|
Conrad
from US$2.78
|
1,886
in stock
|
Buy Now |
|
TME
from US$1.31
|
1,716
in stock
|
Buy Now |
|
Farnell
from US$2.41
|
1,698
in stock
|
Buy Now |
|
TTI Americas
from US$1.55
|
1,243
in stock
|
Buy Now |
|
Newark Electronics
from US$1.98
|
528
in stock
|
Buy Now |
|
Avnet America
from US$1.20
|
123
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,155
in stock
|
Buy Now |
|
RS Americas
from US$2.17
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.15
|
0
in stock
|
Buy Now |
|
Sager
from US$1.52
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.96
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.01
|
0
in stock
|
Buy Now |
|
EME
from US$1.29
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 4.041/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.80mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
